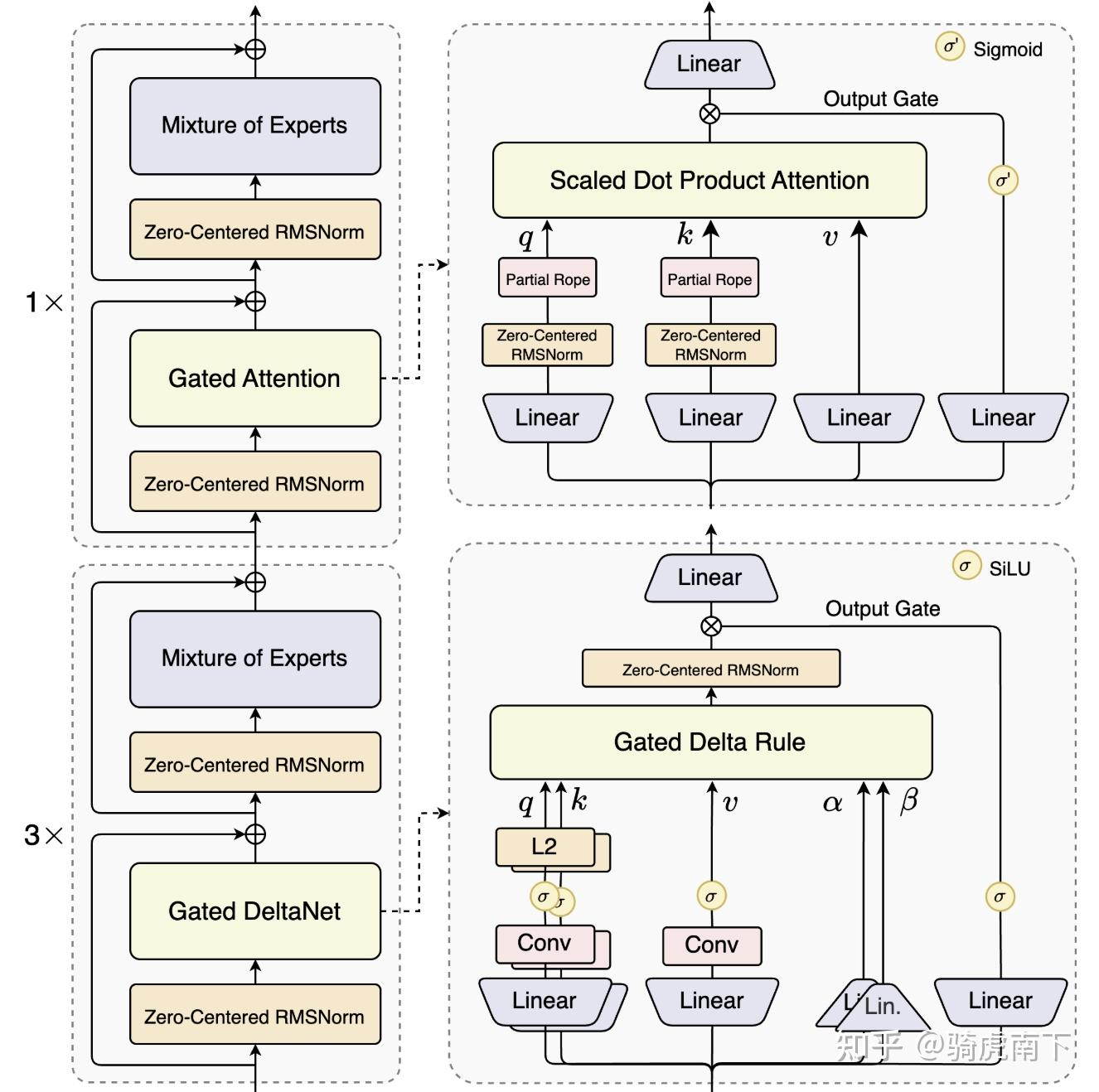

Qwen3.5架构图（图来自知乎骑虎难下）
本节修改的代码
gdn_attention.py（补齐prefill和decode的Gated DeltaRule）

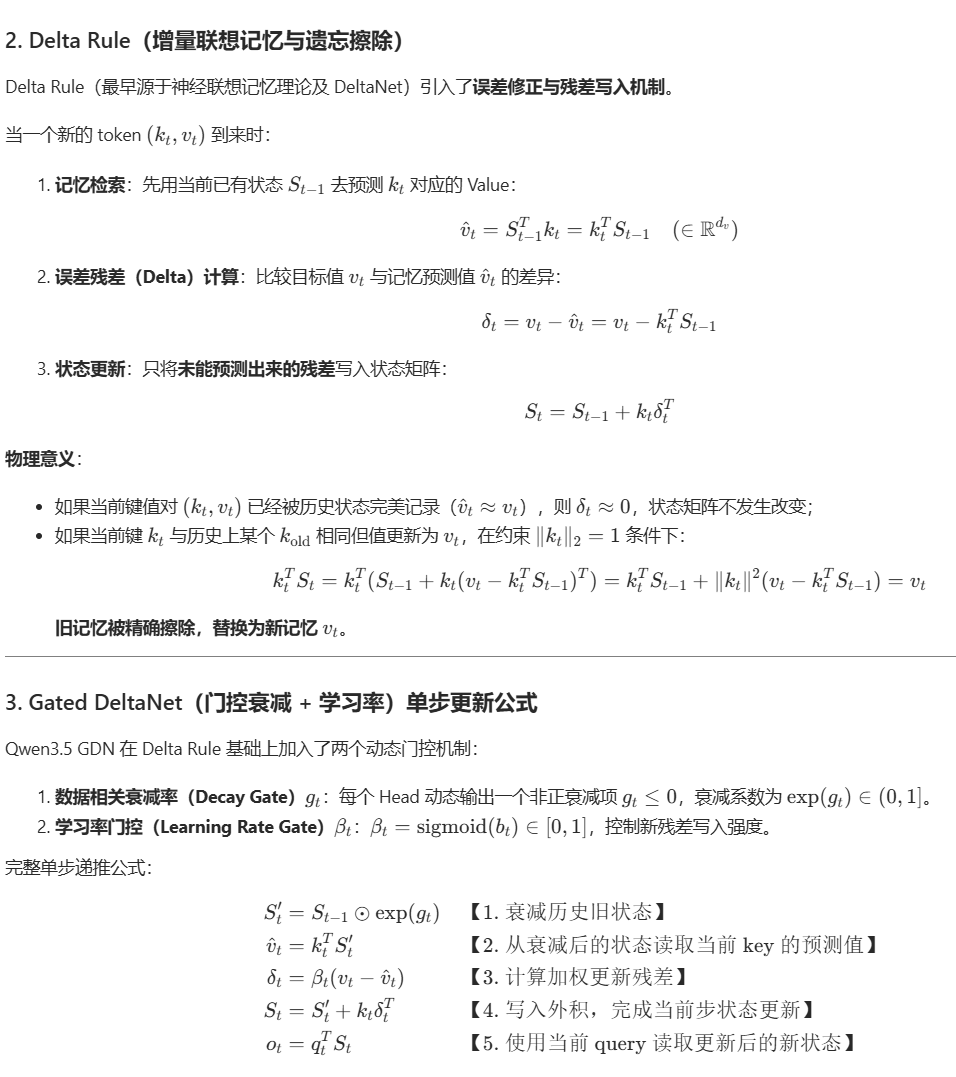

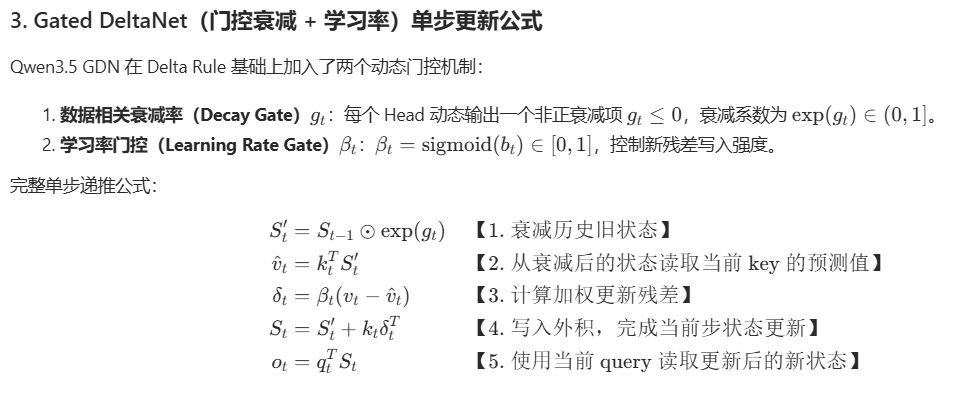

Qwen3.5在线性注意力的基础上还引入了Gated DeltaRule，以解决联想记忆擦除与更新的问题

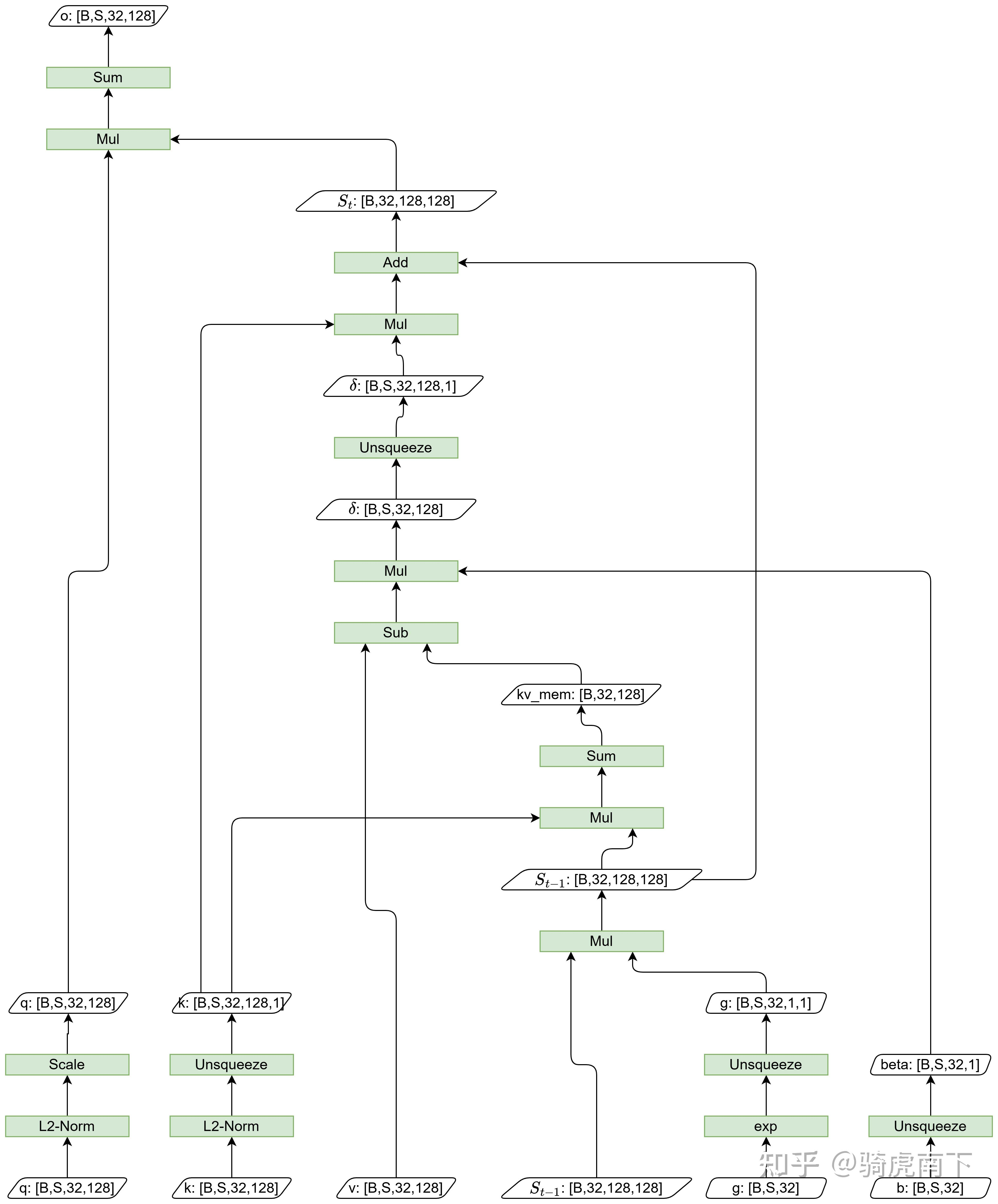

GDN模块的Gated Delta Rule的具体变换如下（图来自知乎骑虎难下）
Gated Delta Rule代码实现(Decode和Prefill)
Decode
没什么好说的，就是实现上面第二张图的流程，唯一值得注意的就是for循环这里decode阶段sequence_length=1
def torch_recurrent_gated_delta_rule(
query: torch.Tensor, # [B, T, H_k, D_k]
key: torch.Tensor, # [B, T, H_k, D_k]
value: torch.Tensor, # [B, T, H_v, D_v]
g: torch.Tensor, # [B, T, H_v] 衰减门控
beta: torch.Tensor, # [B, T, H_v] 学习率门控
initial_state: torch.Tensor | None = None, # [B, H_v, D_k, D_v]
output_final_state: bool = False,
use_qk_l2norm_in_kernel: bool = False,
):
initial_dtype = query.dtype
batch_size, sequence_length, _, k_head_dim = key.shape
num_v_heads, v_head_dim = value.shape[-2:]
decay = g
# 统一转为 fp32 保证数值稳定性，并转置为 [B, H, T, D]
query, key, value, beta, decay = [
x.transpose(1, 2).to(torch.float32, memory_format=torch.contiguous_format)
for x in (query, key, value, beta, decay)
]
if use_qk_l2norm_in_kernel:
query = l2norm(query, dim=-1, eps=1e-6)
key = l2norm(key, dim=-1, eps=1e-6)
# scaling 作用于 query
query = query / (query.shape[-1] ** 0.5)
if initial_state is None:
recurrent_state_shape = (batch_size, num_v_heads, k_head_dim, v_head_dim)
last_recurrent_state = torch.zeros(recurrent_state_shape, dtype=value.dtype, device=value.device)
else:
# 等价于.to(dtype=value.dtype, device=value.device)
last_recurrent_state = initial_state.to(value)
core_attn_out = torch.zeros_like(value)
# 逐时间步递推（Decode 阶段 sequence_length == 1，只循环 1 次）
for i in range(sequence_length):
q_t, k_t, v_t = query[:, :, i], key[:, :, i], value[:, :, i] # [B, H, D]
# 1. 衰减旧状态: S' = S_{t-1} * exp(g_t)
#None表示拓展维度
decay_t = decay[:, :, i].exp()[..., None, None] # [B, H, 1, 1]
last_recurrent_state = last_recurrent_state * decay_t
# 2. 从状态中检索已有记忆: kv_mem = k_t^T @ S'
# last_recurrent_state: [B, H, D_k, D_v], k_t.unsqueeze(-1): [B, H, D_k, 1]
# 在 dim=-2 (D_k 维) 求和得到预测值: [B, H, D_v]
kv_mem = (last_recurrent_state * k_t.unsqueeze(-1)).sum(dim=-2)
# 3. 计算残差 delta: delta = (v_t - kv_mem) * beta_t
beta_t = beta[:, :, i].unsqueeze(-1) # [B, H, 1]
delta = (v_t - kv_mem) * beta_t # [B, H, D_v]
# 4. 外积写入新状态: S_t = S' + k_t @ delta^T
# k_t.unsqueeze(-1) [B, H, D_k, 1] * delta.unsqueeze(-2) [B, H, 1, D_v] -> [B, H, D_k, D_v]
last_recurrent_state = last_recurrent_state + k_t.unsqueeze(-1) * delta.unsqueeze(-2)
# 5. 用当前 query 读取新状态: o_t = q_t^T @ S_t
# 这里core_attn_out维度是[B, H_v, T, D_v]
core_attn_out[:, :, i] = (last_recurrent_state * q_t.unsqueeze(-1)).sum(dim=-2)
last_recurrent_state = None if not output_final_state else last_recurrent_state
core_attn_out = core_attn_out.transpose(1, 2).contiguous().to(initial_dtype)
return core_attn_out, last_recurrent_state
Prefill（高难警告⚠！）

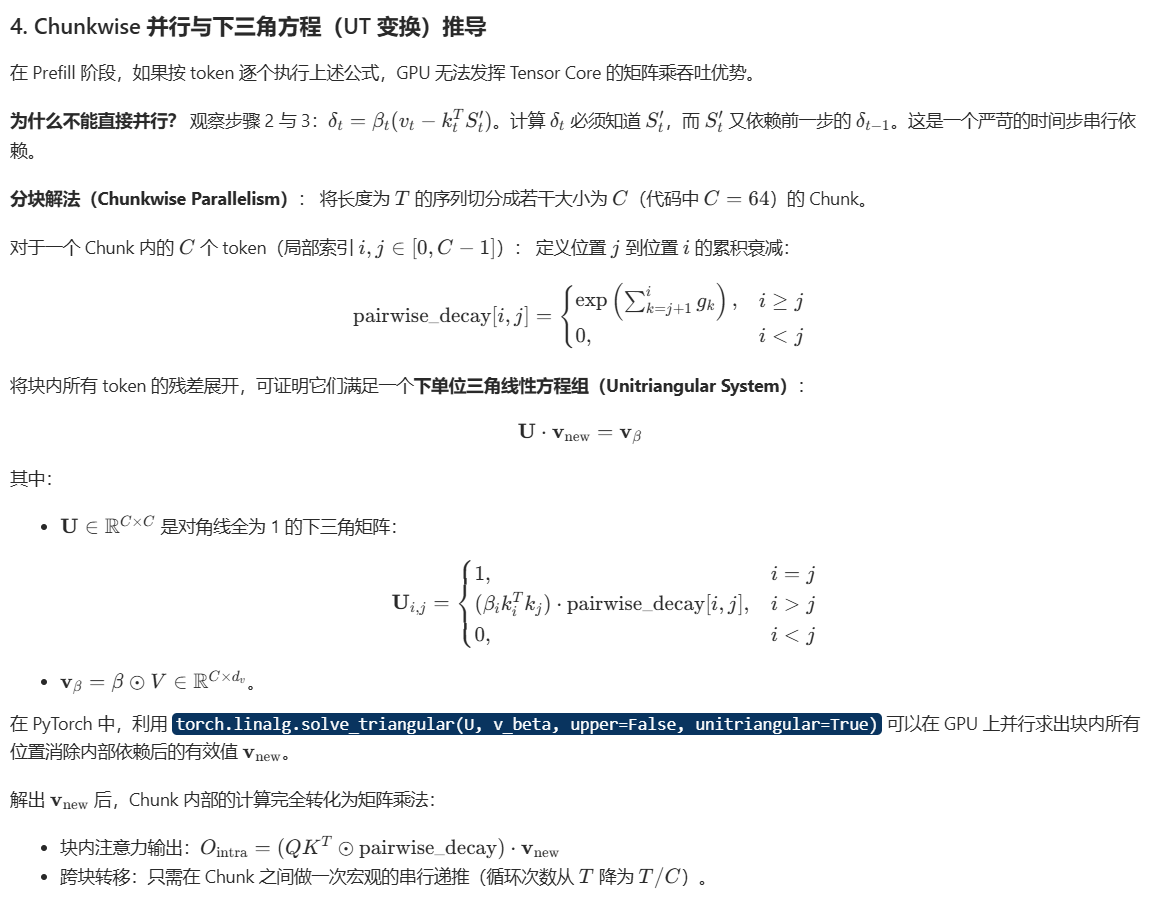

Prefill阶段如果按token逐个执行Gated DeltaNet的更新公式，效率会很低，因此这里使用了分块解法，如下（推导和对应的代码都比较难，可以当参考）：

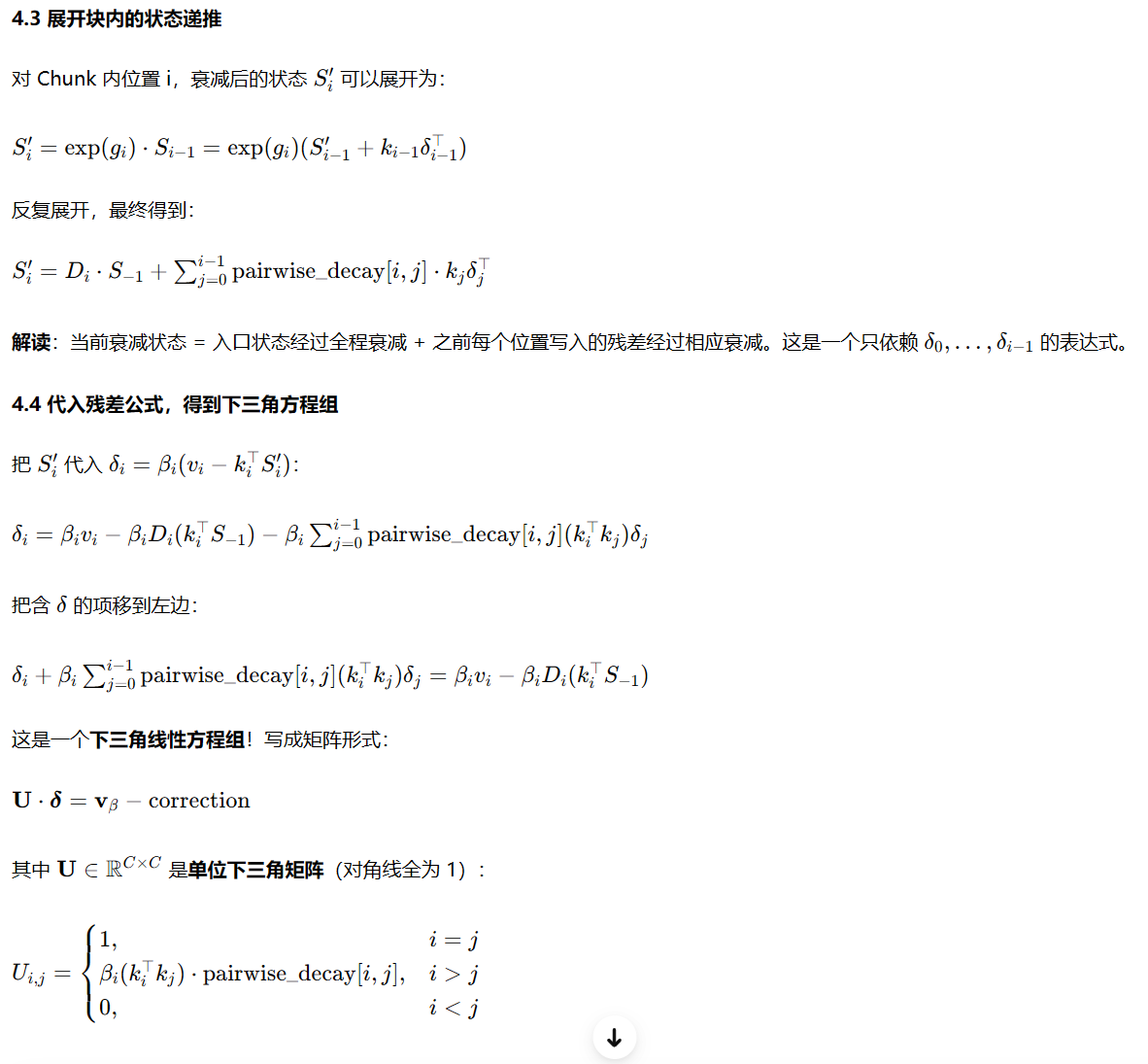

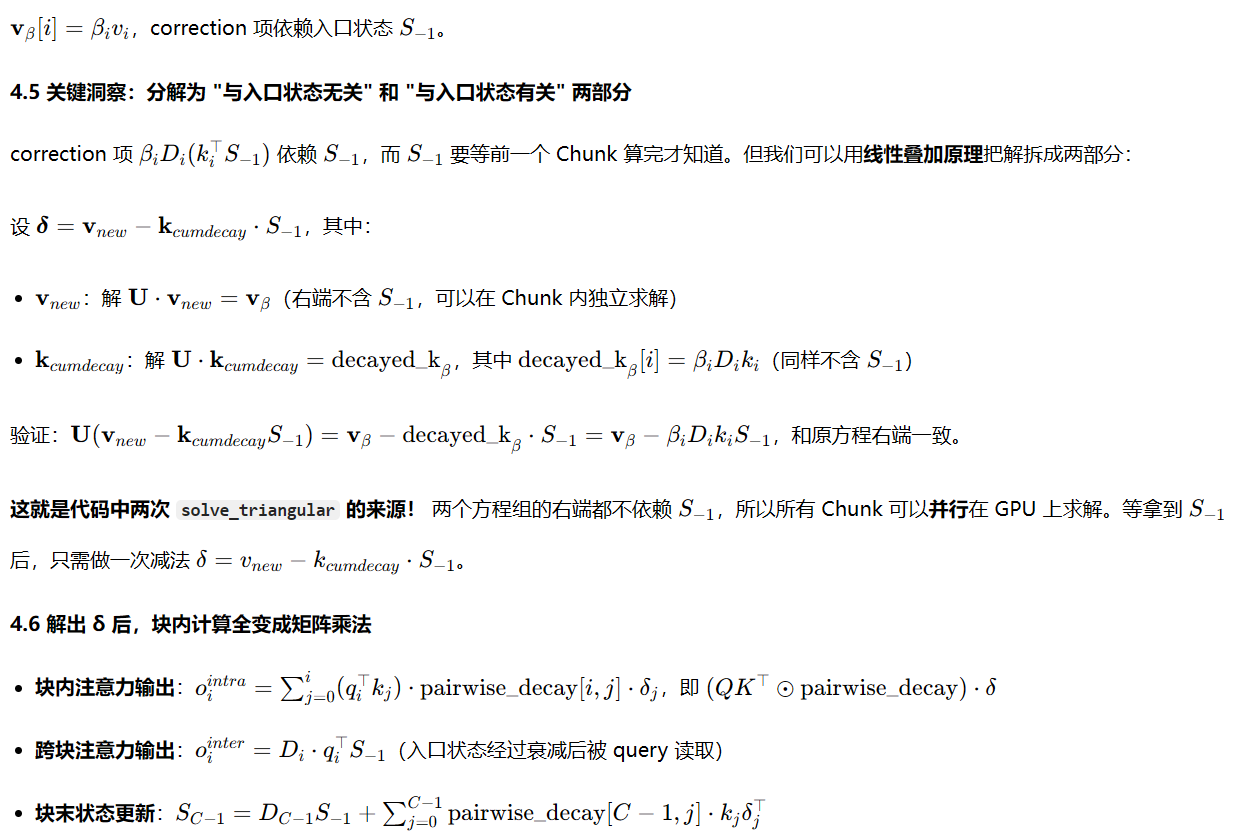

这里中间残差展开证明过程如下：
代码实现如下
def torch_chunk_gated_delta_rule(
query: torch.Tensor, # [B, T, H_k, D_k]
key: torch.Tensor, # [B, T, H_k, D_k]
value: torch.Tensor,# [B, T, H_v, D_v]
g: torch.Tensor, # [B, T, H_v] 衰减门控
beta: torch.Tensor,# [B, T, H_v] 学习率门控
chunk_size: int = 64,
initial_state: torch.Tensor | None = None,# [B, H_v, D_k, D_v]
output_final_state: bool = False,
use_qk_l2norm_in_kernel: bool = False,
):
# 1. 维度准备与 Padding 到 chunk_size 的整数倍
initial_dtype = query.dtype
batch_size, sequence_length, _, k_head_dim = key.shape
num_v_heads, v_head_dim = value.shape[-2:]
recurrent_state_shape = (batch_size, num_v_heads, k_head_dim, v_head_dim)
padded_output_shape = (batch_size, num_v_heads, -1, v_head_dim)
decay = g
# 统一转为 fp32 保证数值稳定性，并转置为 [B, H, T, D]
query, key, value, beta, decay = [
x.transpose(1, 2).to(torch.float32, memory_format=torch.contiguous_format)
for x in (query, key, value, beta, decay)
]
if use_qk_l2norm_in_kernel:
query = l2norm(query, dim=-1, eps=1e-6)
key = l2norm(key, dim=-1, eps=1e-6)
scaling = query.shape[-1] ** -0.5
query = query * scaling
pad_size = (chunk_size - sequence_length % chunk_size) % chunk_size
# pad元组的长度必须是偶数，并且它指定了从最后一个维度开始往前每个维度两侧的填充数量。
# 格式为：(left, right, top, bottom, front, back, ...)
# 顺序是 从最后一个维度开始往前：
# 最后一维：(left, right)
# 倒数第二维：(top, bottom)
# 倒数第三维：(front, back)
query, key, value = (F.pad(x, (0, 0, 0, pad_size)) for x in (query, key, value))
beta, decay = (F.pad(x, (0, pad_size)) for x in (beta, decay))
total_sequence_length = sequence_length + pad_size
num_chunks = total_sequence_length // chunk_size
# 2. Reshape 为 [B, H, num_chunks, chunk_size, D]
v_beta = value * beta.unsqueeze(-1)
k_beta = key * beta.unsqueeze(-1)
# [B, H, num_chunks, chunk_size, D]
query, key, k_beta, v_beta = [
x.reshape(x.shape[0], x.shape[1], -1, chunk_size, x.shape[-1])
for x in (query, key, k_beta, v_beta)
]
#[B, H, num_chunks, chunk_size]
decay = decay.reshape(decay.shape[0], decay.shape[1], -1, chunk_size)
# 3. 构造下三角系统与累积衰减矩阵
strictly_upper_mask = torch.ones(chunk_size, chunk_size, dtype=torch.bool, device=query.device).triu(1)
#含义：cum_decay[i] = 从 chunk 开头到第 i 个位置的衰减累积值。
cum_decay = decay.cumsum(dim=3)
#cum_decay.unsqueeze(4) → [B, H, num_chunks, chunk_size, 1]
#cum_decay.unsqueeze(3) → [B, H, num_chunks, 1, chunk_size]
# pairwise_decay[i, j] = exp(cum[i] - cum[j])
pairwise_decay = cum_decay.unsqueeze(4) - cum_decay.unsqueeze(3)
pairwise_decay = pairwise_decay.masked_fill(strictly_upper_mask, float("-inf")).exp()
#k_beta: [B, H, num_chunks, chunk_size, D]
#key.transpose(-1,-2): [B, H, num_chunks, D, chunk_size]
#ut_system: [B, H, num_chunks, chunk_size, chunk_size]
ut_system = (k_beta @ key.transpose(-1, -2)) * pairwise_decay
#intra_chunk_attn: [B, H, num_chunks, chunk_size, chunk_size]
intra_chunk_attn = (query @ key.transpose(-1, -2)) * pairwise_decay
#decayed_k_beta: [B, H, num_chunks, chunk_size, 1]
decayed_k_beta = k_beta * cum_decay.exp().unsqueeze(-1)
# 4. UT 变换：求解下单位三角方程组，解出消除块内依赖后的有效输入
new_values = torch.linalg.solve_triangular(ut_system, v_beta, upper=False, unitriangular=True)
k_cumdecay = torch.linalg.solve_triangular(ut_system, decayed_k_beta, upper=False, unitriangular=True)
if initial_state is None:
last_recurrent_state = torch.zeros(recurrent_state_shape, dtype=new_values.dtype, device=new_values.device)
else:
last_recurrent_state = initial_state.to(new_values)
core_attn_out = torch.zeros_like(new_values)
#query 乘上当前累积衰减（从块头到当前）
#key 乘上从当前位置到块尾的剩余衰减
#chunk_decay：整个块的总衰减因子（块尾累积衰减），用于状态跨块传递
query = query * cum_decay.exp().unsqueeze(-1)
key = key * (cum_decay[..., -1:] - cum_decay).exp().unsqueeze(-1)
chunk_decay = cum_decay[..., -1].exp()[..., None, None]
# 5. 跨 Chunk 宏观递推
for i in range(num_chunks):
v_new = new_values[:, :, i] - k_cumdecay[:, :, i] @ last_recurrent_state
inter_chunk_attn = query[:, :, i] @ last_recurrent_state
core_attn_out[:, :, i] = inter_chunk_attn + intra_chunk_attn[:, :, i] @ v_new
# S_{t+1} = S_t * chunk_decay + k^T @ v_new
last_recurrent_state = last_recurrent_state * chunk_decay[:, :, i] + key[:, :, i].transpose(-1, -2) @ v_new
last_recurrent_state = None if not output_final_state else last_recurrent_state
core_attn_out = core_attn_out.reshape(padded_output_shape)[:, :, :sequence_length]
core_attn_out = core_attn_out.transpose(1, 2).to(initial_dtype, memory_format=torch.contiguous_format)
return core_attn_out, last_recurrent_state
