Industry Challenges: Grid Vulnerabilities in the Renewable Energy Surge

The rapid integration of photovoltaic (PV) systems, wind farms, and electric vehicle (EV) charging infrastructure has exposed distribution grids to three critical risks:

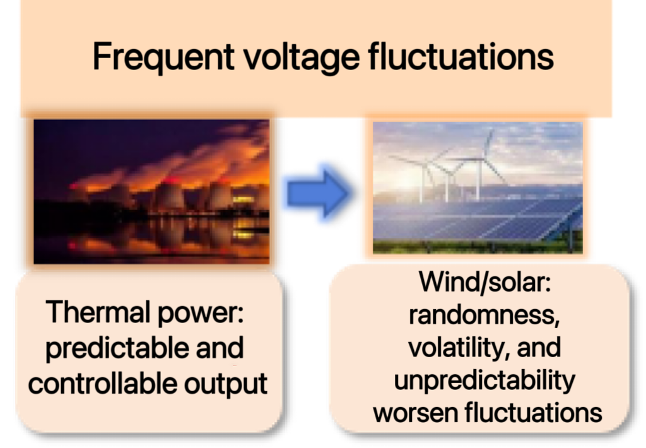

🔺 Severe Voltage Fluctuations – Threatening power stability for sensitive facilities (e.g., hospitals, semiconductor plants).
🔺 Three-Phase Unbalance – Caused by uncoordinated distributed generation and uneven load distribution.

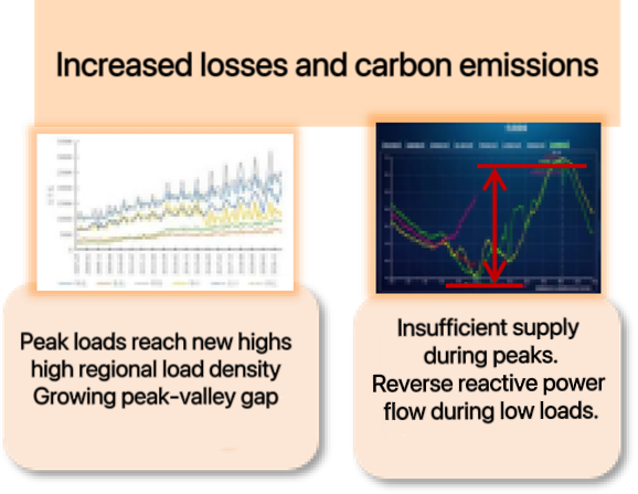

🔺 Widening Peak-Valley Demand Gap – Under-supply during peak hours, reverse reactive power flow during valleys, and soaring carbon emissions.
Traditional voltage regulation devices—plagued by short lifespans, slow response, and poor adaptability—struggle to address these challenges. What is the solution?

Disruptive Innovation: High-Frequency Vacuum On-Load Tap Changer

West Journey Corporation, in collaboration with the country’s leading R&D teams, introduces a revolutionary solution:

Core Advantages

1️⃣ Ultra-Long Lifespan, Zero Maintenance

• 500,000 electrical cycles + 1.5 million mechanical cycles, covering the entire transformer lifecycle.
• Extreme Environment Reliability: Stable operation under oil temperatures from -45°C to 120°C.
• 200% Overload Endurance: Sustained performance with <2-second switching intervals, ideal for high-frequency operations (world-leading capability).

2️⃣ Intelligent Redundancy: Voltage Adjustment During Outages

• Proprietary Controller: Ensures tap adjustment during power fluctuations or three-phase outages, guaranteeing zero grid downtime.

3️⃣ Wide-Range Precision Control

• 9-step fine-tuning with ±20% voltage regulation, effectively managing fluctuations from renewable sources (e.g., solar/wind).

Application Scenarios & Environmental Requirements:
Universal Coverage, Robust Performance in Extreme Conditions



Application Conditions: Reliable Operation in Harsh Environments

1. Electrical Compatibility

🔌 Rated Parameters

• Voltage Range: Primary voltage range: Max. 12kV.
• Current Range: Primary current range: Max. 60A.
• Frequency Compatibility: 50Hz/60Hz three-phase oil-immersed transformers.

2. Extreme Environmental Adaptability

🌡️ Temperature Limits

• Oil Temperature Range: -45°C ~ 120°C (no performance degradation during long-term operation).
• Ambient Temperature: -35°C ~ 55°C (installation site requirement).

⛰️ Geographical Constraints

• Altitude: ≤2000 meters (customizable for higher altitudes).

💨 Ambient Cleanliness

• No excessive dust, explosive gases, or corrosive agents.

💧 Humidity Requirements

• Relative Humidity: ≤80% (at 20°C).

Technical Specifications Explained

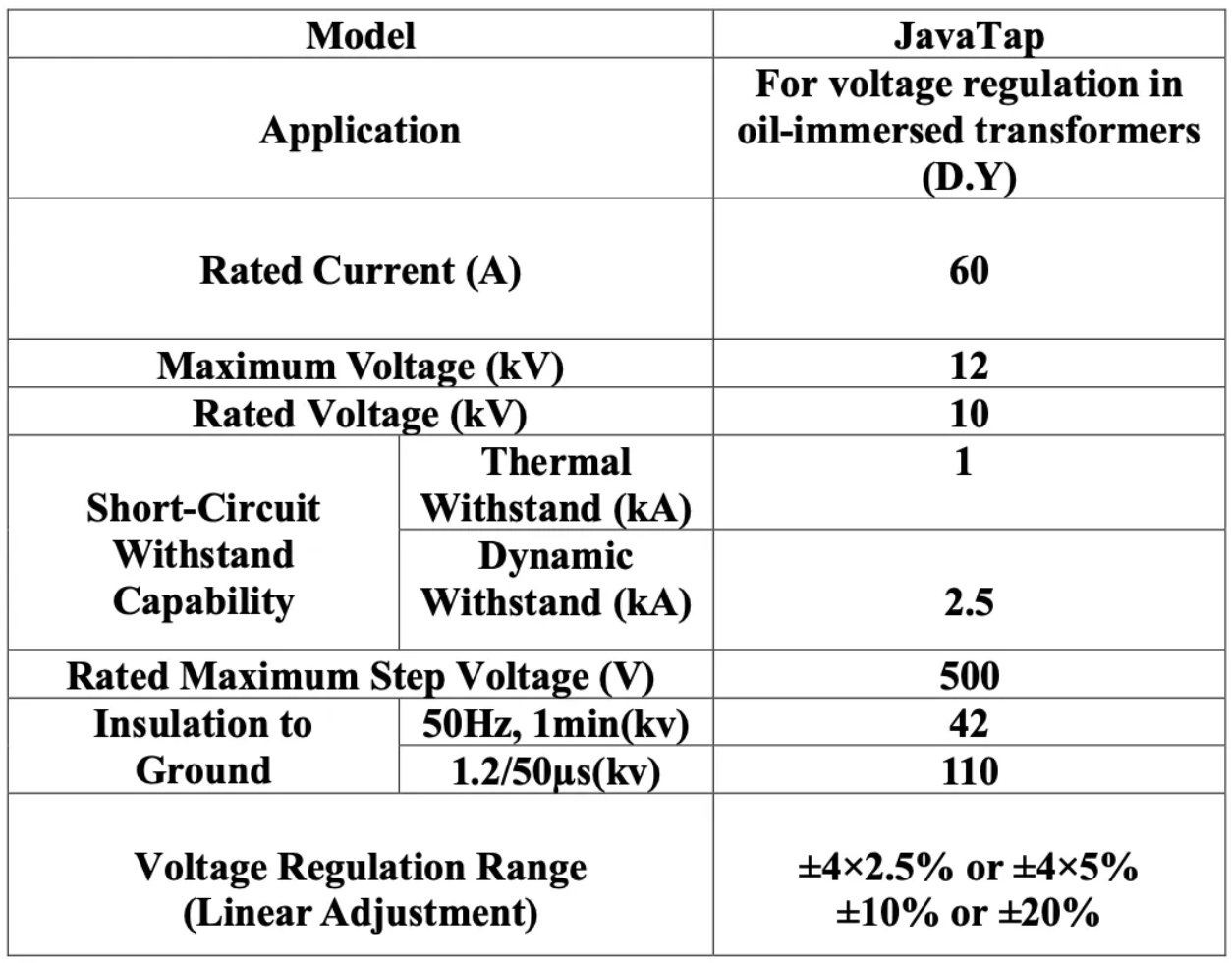

Table 1: Technical Specifications

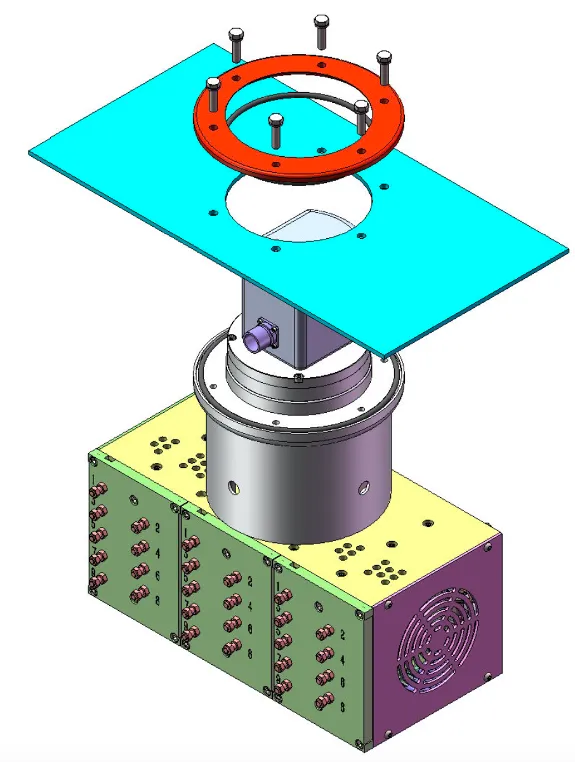

Switch Configuration and Exterior Diagram

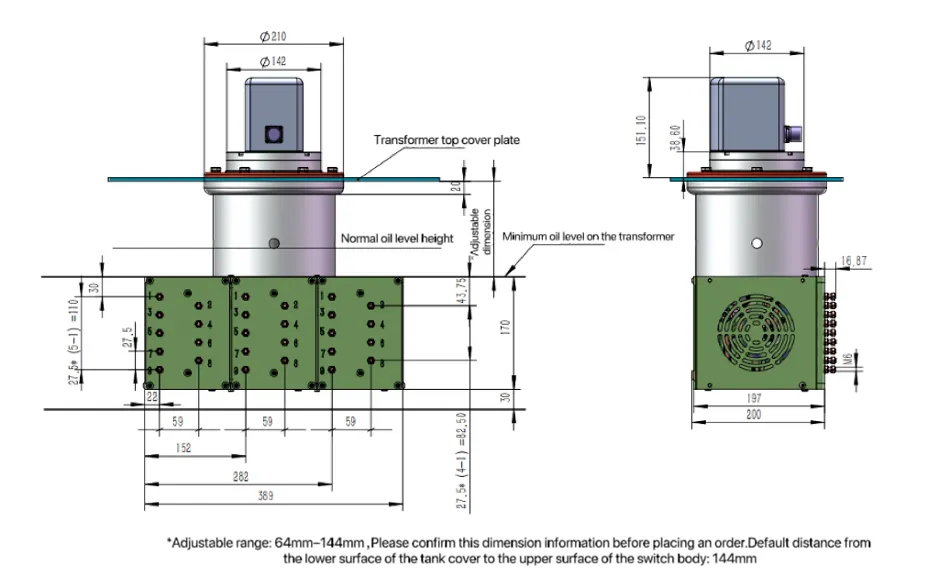

Figure 1: Outline Dimensions of the Switch Body



Why Choose Us?

✅ Data-Driven Excellence: 500,000 operational cycles = 5x the lifespan of traditional switches.
✅ Cost Efficiency: Maintenance-free design + extended lifespan reduce total lifecycle costs by 60%.
✅ Certified Reliability: Compliant with IEC international standards, validated in 20+ global grid projects.

Corporate Commitment
We are dedicated to serving power systems with unwavering focus:

• Addressing utilities’ critical challenges.
• Enhancing distribution grid power quality.
• Driving green, low-carbon innovation and technological breakthroughs.

Act Now to Lead the Grid Upgrade!
Please email your enquiry to WJCoresTech@outlook.com

In the Renewable Energy Era, Grid Stability Is Achievable!

West Journey Corporation: Empowering Smart Grids with Cutting-Edge Technology to Drive the Global Energy Transition! 🔋🌍
