【Dify精讲】第4章：应用管理模块源码解析
Dify应用管理模块采用经典三层架构设计，包含控制器层、服务层和数据层。系统支持五种应用模式（基础聊天、Agent聊天、高级聊天、工作流和文本补全），每种模式具有独特的配置方式。核心创建流程通过AppService处理，包含参数验证、应用实例创建和模式化配置初始化。控制器层提供RESTful接口，服务层封装业务逻辑，数据层管理应用实体和配置。该架构实现了应用全生命周期的统一管理，从创建到发布的完整
·
引言
如果说 Dify 的核心是 AI 应用的编排和执行，那么应用管理模块就是整个系统的"指挥中心"。每当我打开 Dify 的控制台，看到那些整齐排列的应用卡片时，总会好奇背后的架构是如何支撑起如此复杂的应用生命周期管理的。
今天，让我们深入 Dify 的应用管理模块，看看从创建一个简单的聊天机器人到发布复杂的 Agent 工作流，这背后的源码是如何组织和运作的。相信我，当你理解了这套架构后，你也能设计出同样优雅的应用管理系统。
一、应用管理架构总览

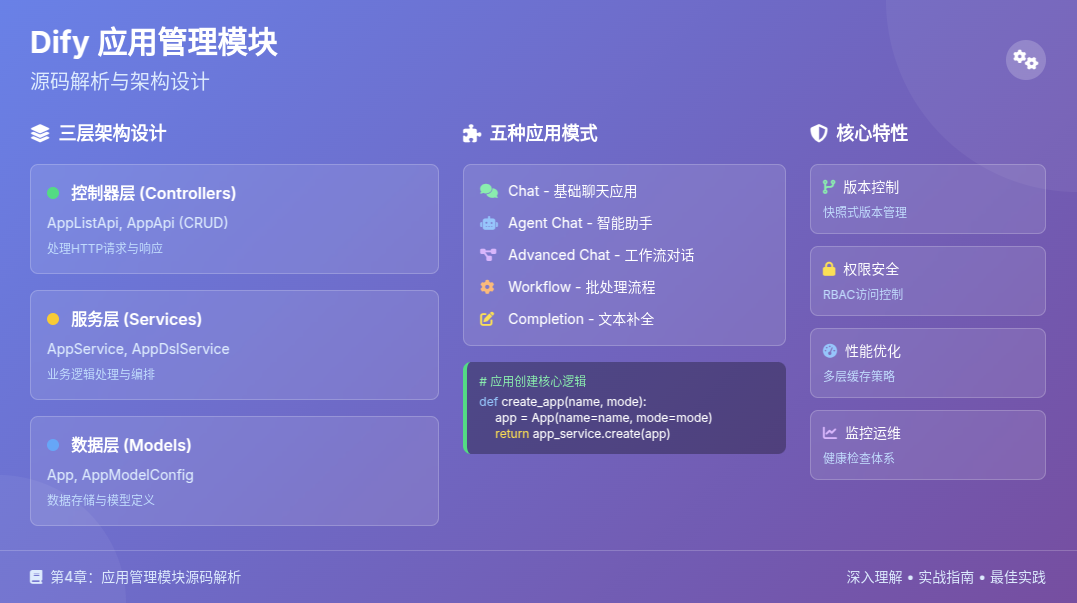

1.1 核心组件架构
Dify 的应用管理采用了经典的三层架构，每一层职责明确，相互配合：
┌───────────────────────────────────────────┐
│ 控制器层 (Controllers) │
│ ┌─────────────┐ ┌─────────────────────┐ │
│ │ AppListApi │ │ AppApi (CRUD) │ │
│ └─────────────┘ └─────────────────────┘ │
└───────────────────────────────────────────┘
│
▼
┌───────────────────────────────────────────┐
│ 服务层 (Services) │
│ ┌─────────────┐ ┌─────────────────────┐ │
│ │ AppService │ │ AppDslService │ │
│ └─────────────┘ └─────────────────────┘ │
└───────────────────────────────────────────┘
│
▼
┌───────────────────────────────────────────┐
│ 数据层 (Models) │
│ ┌─────────────┐ ┌─────────────────────┐ │
│ │ App │ │ AppModelConfig │ │
│ └─────────────┘ └─────────────────────┘ │
└───────────────────────────────────────────┘
1.2 应用类型与模式
Dify 支持五种不同的应用模式，每种模式都有其独特的配置和管理方式：
# 来源：api/controllers/console/app/app.py
ALLOW_CREATE_APP_MODES = [
"chat", # 基础聊天应用
"agent-chat", # Agent 聊天应用
"advanced-chat", # 高级聊天应用（基于工作流）
"workflow", # 纯工作流应用
"completion" # 文本补全应用
]
每种模式的设计理念：
- Chat: 简单的问答式交互，适合客服场景
- Agent Chat: 具备工具调用能力的智能助手
- Advanced Chat: 基于可视化工作流的复杂对话
- Workflow: 批处理式的工作流，适合自动化任务
- Completion: 文本续写和补全场景
二、应用创建与配置流程
2.1 应用创建的完整链路
让我们跟踪一个应用从创建到可用的完整流程：
# 来源：api/controllers/console/app/app.py (简化版本)
@bp.route('', methods=['POST'])
@login_required
@account_initialization_required
def create_app():
"""创建应用的控制器入口"""
# 1. 参数解析与验证
parser = reqparse.RequestParser()
parser.add_argument('name', type=str, required=True, location='json')
parser.add_argument('mode', type=str, required=True,
choices=ALLOW_CREATE_APP_MODES, location='json')
parser.add_argument('icon_type', type=str, choices=['emoji', 'image'],
location='json')
parser.add_argument('icon', type=str, location='json')
args = parser.parse_args()
try:
# 2. 调用服务层创建应用
app_service = AppService()
app = app_service.create_app(
tenant_id=current_user.current_tenant_id,
name=args['name'],
mode=AppMode.value_of(args['mode']),
icon_type=args.get('icon_type', 'emoji'),
icon=args.get('icon', '🤖'),
created_by=current_user
)
# 3. 返回标准化响应
return {
'id': app.id,
'name': app.name,
'mode': app.mode,
'created_at': app.created_at.isoformat()
}, 201
except Exception as e:
logging.exception(f"Failed to create app: {str(e)}")
return {'error': 'Failed to create application'}, 500
2.2 服务层的创建逻辑
AppService 是应用管理的核心服务类，负责处理所有应用相关的业务逻辑：
# 来源：api/services/app_service.py (核心逻辑提取)
class AppService:
@staticmethod
def create_app(tenant_id: str, name: str, mode: AppMode,
icon_type: str = 'emoji', icon: str = '🤖',
created_by: Account = None) -> App:
"""
创建新应用的服务层逻辑
Args:
tenant_id: 租户ID
name: 应用名称
mode: 应用模式枚举
icon_type: 图标类型
icon: 图标内容
created_by: 创建者账户
Returns:
App: 创建的应用实例
"""
# 1. 创建应用基础信息
app = App(
tenant_id=tenant_id,
name=name,
mode=mode.value,
icon_type=icon_type,
icon=icon,
is_demo=False,
enable_site=True, # 默认开启站点
enable_api=True, # 默认开启API
created_by=created_by.id if created_by else None,
updated_by=created_by.id if created_by else None
)
# 2. 保存到数据库
db.session.add(app)
db.session.flush() # 获取自动生成的ID
# 3. 根据应用模式初始化配置
if mode in [AppMode.CHAT, AppMode.AGENT_CHAT, AppMode.COMPLETION]:
# 基于模型配置的应用需要创建 AppModelConfig
app_model_config = AppModelConfig(
app_id=app.id,
provider="", # 待用户配置
model="", # 待用户配置
configs={}, # 默认配置
created_by=created_by.id if created_by else None
)
db.session.add(app_model_config)
app.app_model_config_id = app_model_config.id
elif mode in [AppMode.ADVANCED_CHAT, AppMode.WORKFLOW]:
# 工作流应用需要创建默认工作流
from services.workflow_service import WorkflowService
workflow_service = WorkflowService()
workflow_service.create_draft_workflow(
app_model=app,
account=created_by
)
# 4. 触发应用创建事件
db.session.commit()
app_was_created.send(app, account=created_by)
return app
2.3 数据模型的精妙设计
Dify 的应用数据模型设计体现了丰富的业务理解：
# 来源：api/models/model.py (App模型核心字段)
class App(db.Model):
"""应用主表 - 存储应用的基础信息"""
__tablename__ = 'apps'
# 基础标识字段
id = db.Column(StringUUID, primary_key=True, default=generate_uuid)
tenant_id = db.Column(StringUUID, nullable=False, index=True)
name = db.Column(db.String(255), nullable=False)
description = db.Column(db.Text)
# 应用类型与状态
mode = db.Column(db.String(255), nullable=False) # chat/workflow/completion等
icon_type = db.Column(db.String(255)) # emoji/image
icon = db.Column(db.String(255))
icon_background = db.Column(db.String(255))
# 发布控制
enable_site = db.Column(db.Boolean, default=False) # 是否启用Web站点
enable_api = db.Column(db.Boolean, default=False) # 是否启用API
is_demo = db.Column(db.Boolean, default=False) # 是否为演示应用
is_public = db.Column(db.Boolean, default=False) # 是否公开
# API限流配置
api_rpm = db.Column(db.Integer, default=0) # 每分钟请求数限制
api_rph = db.Column(db.Integer, default=0) # 每小时请求数限制
# 配置关联
app_model_config_id = db.Column(StringUUID) # 关联的模型配置ID
# 时间戳
created_at = db.Column(db.DateTime, default=datetime.utcnow)
updated_at = db.Column(db.DateTime, default=datetime.utcnow,
onupdate=datetime.utcnow)
created_by = db.Column(StringUUID)
updated_by = db.Column(StringUUID)
@property
def app_model_config(self):
"""懒加载应用模型配置"""
if self.app_model_config_id:
return db.session.query(AppModelConfig).filter(
AppModelConfig.id == self.app_model_config_id
).first()
return None
@property
def workflow(self):
"""获取关联的工作流（对于工作流类型应用）"""
from models.workflow import Workflow
return db.session.query(Workflow).filter(
Workflow.app_id == self.id
).first()
设计亮点：
- 分离关注点: 基础信息和配置信息分表存储，避免单表过宽
- 懒加载机制: 使用
@property实现关联数据的懒加载，提高性能 - 状态控制: 通过多个布尔字段精确控制应用的可见性和访问性
- 审计友好: 完整的创建和更新时间戳，便于追踪变更
三、应用版本控制机制
3.1 快照式版本管理
Dify 采用了快照式的版本管理策略，每次发布都会创建配置的完整快照：
# 来源：api/services/app_service.py (版本发布逻辑)
def publish_app(self, app_model: App, account: Account) -> dict:
"""
发布应用 - 创建当前配置的快照
Args:
app_model: 应用实例
account: 操作账户
Returns:
dict: 发布结果信息
"""
# 1. 获取当前应用配置
if app_model.mode in [AppMode.ADVANCED_CHAT.value, AppMode.WORKFLOW.value]:
# 工作流应用：发布工作流版本
from services.workflow_service import WorkflowService
workflow_service = WorkflowService()
# 获取草稿版本
draft_workflow = workflow_service.get_draft_workflow(app_model)
if not draft_workflow:
raise ValueError("No draft workflow found")
# 创建发布版本的快照
published_workflow = workflow_service.publish_workflow(
draft_workflow, account
)
return {
'version': published_workflow.version,
'published_at': published_workflow.created_at.isoformat(),
'published_by': account.name
}
else:
# 模型配置应用：发布模型配置快照
app_model_config = app_model.app_model_config
if not app_model_config:
raise ValueError("No model config found")
# 创建配置快照 (实际实现中会有更复杂的版本管理)
published_config = self._create_config_snapshot(
app_model_config, account
)
return {
'version': published_config.version,
'published_at': published_config.created_at.isoformat(),
'published_by': account.name
}
def _create_config_snapshot(self, config: AppModelConfig,
account: Account) -> AppModelConfig:
"""创建配置快照"""
# 生成新版本号
version = self._generate_version_number()
# 复制配置对象
snapshot = AppModelConfig(
app_id=config.app_id,
provider=config.provider,
model=config.model,
configs=config.configs.copy(), # 深拷贝配置
version=version,
is_current_version=True, # 标记为当前版本
created_by=account.id
)
# 将之前的版本标记为非当前版本
db.session.query(AppModelConfig).filter(
AppModelConfig.app_id == config.app_id,
AppModelConfig.is_current_version == True
).update({'is_current_version': False})
db.session.add(snapshot)
db.session.commit()
return snapshot
3.2 版本回滚机制
版本管理的精髓在于能够安全地回滚到任意历史版本：
def rollback_to_version(self, app_model: App, target_version: str,
account: Account) -> bool:
"""
回滚到指定版本
Args:
app_model: 应用实例
target_version: 目标版本号
account: 操作账户
Returns:
bool: 回滚是否成功
"""
# 1. 查找目标版本
target_config = db.session.query(AppModelConfig).filter(
AppModelConfig.app_id == app_model.id,
AppModelConfig.version == target_version
).first()
if not target_config:
raise ValueError(f"Version {target_version} not found")
# 2. 创建基于目标版本的新配置
rollback_config = AppModelConfig(
app_id=app_model.id,
provider=target_config.provider,
model=target_config.model,
configs=copy.deepcopy(target_config.configs),
version=self._generate_version_number(),
is_current_version=True,
created_by=account.id,
rollback_from_version=target_version # 记录回滚源
)
# 3. 更新版本状态
self._update_version_status(app_model.id, rollback_config)
# 4. 记录回滚操作
self._log_rollback_operation(app_model, target_version, account)
return True
四、应用模板系统实现
4.1 模板系统架构
Dify 提供了强大的应用模板系统，让用户能够快速创建预配置的应用：
# 来源：constants/model_template.py (应用模板定义)
default_app_templates = {
"customer_service": {
"name": "智能客服助手",
"description": "基于知识库的智能客服，支持多轮对话和问题解答",
"mode": "agent-chat",
"icon": "🎧",
"model_config": {
"provider": "openai",
"model": "gpt-3.5-turbo",
"configs": {
"prompt_template": {
"template": """你是一个专业的客服助手，请根据以下知识库内容回答用户问题：
{{#context#}}
{{context}}
{{#context#}}
用户问题：{{query}}
请用友好、专业的语气回答，如果知识库中没有相关信息，请诚实地告知用户并建议联系人工客服。""",
"variables": [
{"key": "context", "name": "知识库上下文", "type": "string"},
{"key": "query", "name": "用户问题", "type": "string"}
]
},
"temperature": 0.2,
"max_tokens": 1000
}
},
"features": {
"speech_to_text": {"enabled": True},
"text_to_speech": {"enabled": True, "voice": "alloy"},
"suggested_questions": {"enabled": True},
"citation": {"enabled": True}
}
},
"content_generator": {
"name": "内容创作助手",
"description": "专业的内容创作工具，支持文章、营销文案、邮件等多种内容生成",
"mode": "completion",
"icon": "✍️",
"model_config": {
"provider": "openai",
"model": "gpt-4",
"configs": {
"prompt_template": {
"template": """请根据以下要求创作内容：
内容类型：{{content_type}}
主题：{{topic}}
目标受众：{{audience}}
语言风格：{{style}}
字数要求：{{word_count}}
请确保内容原创、有吸引力且符合目标受众的需求。""",
"variables": [
{"key": "content_type", "name": "内容类型", "type": "select",
"options": ["博客文章", "营销文案", "邮件", "社交媒体帖子"]},
{"key": "topic", "name": "主题", "type": "string"},
{"key": "audience", "name": "目标受众", "type": "string"},
{"key": "style", "name": "语言风格", "type": "select",
"options": ["正式", "轻松", "幽默", "专业"]},
{"key": "word_count", "name": "字数", "type": "number"}
]
},
"temperature": 0.8,
"max_tokens": 2000
}
}
}
}
4.2 模板应用创建
基于模板创建应用的逻辑封装了复杂的配置生成过程：
# 应用模板服务
class AppTemplateService:
@staticmethod
def create_from_template(template_id: str, app_name: str,
tenant_id: str, account: Account) -> App:
"""
基于模板创建应用
Args:
template_id: 模板标识
app_name: 应用名称
tenant_id: 租户ID
account: 创建者账户
Returns:
App: 创建的应用实例
"""
# 1. 获取模板配置
template = default_app_templates.get(template_id)
if not template:
raise ValueError(f"Template {template_id} not found")
# 2. 创建应用基础信息
app = App(
tenant_id=tenant_id,
name=app_name,
description=template['description'],
mode=template['mode'],
icon_type='emoji',
icon=template['icon'],
enable_site=True,
enable_api=True,
created_by=account.id
)
db.session.add(app)
db.session.flush()
# 3. 应用模板配置
model_config = template['model_config']
app_model_config = AppModelConfig(
app_id=app.id,
provider=model_config['provider'],
model=model_config['model'],
configs=model_config['configs'],
created_by=account.id
)
db.session.add(app_model_config)
app.app_model_config_id = app_model_config.id
# 4. 配置特性功能
if 'features' in template:
features = template['features']
app_model_config.configs.update(features)
# 5. 完成创建
db.session.commit()
app_was_created.send(app, account=account)
return app
五、应用导入导出功能
5.1 DSL格式设计
Dify 定义了自己的 DSL (Domain Specific Language) 格式来描述应用配置：
# 来源：api/services/app_dsl_service.py (DSL导出逻辑)
class AppDslService:
@classmethod
def export_dsl(cls, app_model: App, include_secret: bool = False) -> dict:
"""
导出应用为DSL格式
Args:
app_model: 应用实例
include_secret: 是否包含敏感信息
Returns:
dict: DSL格式的应用配置
"""
# 1. 基础信息
export_data = {
"version": "0.6.13", # DSL版本
"kind": "app",
"app": {
"name": app_model.name,
"mode": app_model.mode,
"icon": app_model.icon,
"icon_background": app_model.icon_background,
"description": app_model.description or ""
}
}
# 2. 根据应用类型导出配置
if app_model.mode in [AppMode.ADVANCED_CHAT.value, AppMode.WORKFLOW.value]:
# 工作流应用
cls._append_workflow_config(export_data, app_model)
else:
# 模型配置应用
cls._append_model_config(export_data, app_model)
# 3. 依赖分析
dependencies = cls._extract_dependencies(app_model)
if dependencies:
export_data["dependencies"] = dependencies
# 4. 环境变量处理
if not include_secret:
cls._mask_sensitive_data(export_data)
return export_data
@classmethod
def _append_workflow_config(cls, export_data: dict, app_model: App):
"""追加工作流配置"""
workflow = app_model.workflow
if not workflow:
raise ValueError("Workflow not found for workflow app")
export_data["workflow"] = {
"graph": workflow.graph_dict,
"features": workflow.features_dict,
"environment_variables": [
{
"key": var.key,
"name": var.name,
"value": var.value if var.value_type != "secret" else "[MASKED]",
"value_type": var.value_type
}
for var in workflow.environment_variables
]
}
@classmethod
def _extract_dependencies(cls, app_model: App) -> list:
"""提取应用依赖"""
dependencies = []
if app_model.mode in [AppMode.ADVANCED_CHAT.value, AppMode.WORKFLOW.value]:
# 从工作流图中提取工具和模型依赖
workflow = app_model.workflow
if workflow:
graph = workflow.graph_dict
for node in graph.get("nodes", []):
node_type = node.get("data", {}).get("type")
if node_type == "tool":
# 工具依赖
provider_id = node.get("data", {}).get("provider_id")
if provider_id:
dependencies.append({
"type": "tool",
"provider": provider_id
})
elif node_type == "llm":
# 模型依赖
model_info = node.get("data", {}).get("model", {})
if model_info:
dependencies.append({
"type": "model",
"provider": model_info.get("provider"),
"model": model_info.get("name")
})
return dependencies
5.2 应用导入实现
导入功能需要处理版本兼容性、数据验证等复杂场景：
@classmethod
def import_from_dsl(cls, tenant_id: str, dsl_data: dict,
account: Account, args: dict = None) -> App:
"""
从DSL导入应用
Args:
tenant_id: 租户ID
dsl_data: DSL数据
account: 导入者账户
args: 额外参数（如应用名称覆盖）
Returns:
App: 导入的应用实例
"""
# 1. 版本检查
dsl_version = dsl_data.get("version", "0.6.0")
if not cls._is_version_compatible(dsl_version):
raise ValueError(f"DSL version {dsl_version} is not compatible")
# 2. 基础信息提取
app_info = dsl_data.get("app", {})
app_name = args.get("name") if args else app_info.get("name")
# 3. 创建应用
app = App(
tenant_id=tenant_id,
name=app_name,
mode=app_info.get("mode"),
icon=app_info.get("icon"),
icon_background=app_info.get("icon_background"),
description=app_info.get("description", ""),
enable_site=True,
enable_api=True,
created_by=account.id
)
db.session.add(app)
db.session.flush()
# 4. 配置导入
app_mode = AppMode.value_of(app.mode)
if app_mode in {AppMode.ADVANCED_CHAT, AppMode.WORKFLOW}:
# 工作流应用配置导入
workflow_data = dsl_data.get("workflow", {})
cls._import_workflow_config(app, workflow_data, account)
else:
# 模型配置应用导入
model_config = dsl_data.get("model_config", {})
cls._import_model_config(app, model_config, account)
# 5. 依赖处理
dependencies = dsl_data.get("dependencies", [])
cls._handle_dependencies(app, dependencies, account)
# 6. 完成导入
db.session.commit()
app_was_created.send(app, account=account)
return app
@classmethod
def _import_workflow_config(cls, app: App, workflow_data: dict, account: Account):
"""导入工作流配置"""
from services.workflow_service import WorkflowService
workflow_service = WorkflowService()
# 创建工作流记录
workflow = workflow_service.create_draft_workflow(
app_model=app,
graph=workflow_data.get("graph", {}),
features=workflow_data.get("features", {}),
account=account
)
# 导入环境变量
env_vars = workflow_data.get("environment_variables", [])
for var_data in env_vars:
if var_data.get("value") != "[MASKED]": # 跳过被屏蔽的敏感数据
workflow_service.create_environment_variable(
workflow=workflow,
key=var_data["key"],
name=var_data["name"],
value=var_data["value"],
value_type=var_data.get("value_type", "string")
)
@classmethod
def _handle_dependencies(cls, app: App, dependencies: list, account: Account):
"""处理应用依赖"""
missing_deps = []
for dep in dependencies:
dep_type = dep.get("type")
if dep_type == "tool":
# 检查工具提供商是否可用
provider_id = dep.get("provider")
if not cls._is_tool_provider_available(app.tenant_id, provider_id):
missing_deps.append(f"Tool provider: {provider_id}")
elif dep_type == "model":
# 检查模型提供商是否配置
provider = dep.get("provider")
if not cls._is_model_provider_configured(app.tenant_id, provider):
missing_deps.append(f"Model provider: {provider}")
if missing_deps:
# 记录缺失依赖的警告
logging.warning(f"App {app.id} imported with missing dependencies: {missing_deps}")
# 可以选择抛出异常或者创建提醒任务
六、应用状态管理与生命周期
6.1 应用状态机设计
Dify 的应用拥有清晰的状态流转机制：
# 应用状态枚举
class AppStatus:
DRAFT = "draft" # 草稿状态
PUBLISHED = "published" # 已发布
DISABLED = "disabled" # 已禁用
ARCHIVED = "archived" # 已归档
class AppLifecycleService:
@staticmethod
def publish_app(app_model: App, account: Account) -> dict:
"""发布应用"""
# 1. 状态检查
if app_model.status == AppStatus.PUBLISHED:
raise ValueError("App is already published")
# 2. 配置验证
validation_result = AppValidator.validate_app_config(app_model)
if not validation_result.is_valid:
raise ValidationError(validation_result.errors)
# 3. 创建发布快照
published_version = AppVersionService.create_published_version(
app_model, account
)
# 4. 更新应用状态
app_model.status = AppStatus.PUBLISHED
app_model.published_at = datetime.utcnow()
app_model.published_by = account.id
app_model.updated_at = datetime.utcnow()
app_model.updated_by = account.id
db.session.commit()
# 5. 触发发布事件
app_published.send(app_model, account=account, version=published_version)
return {
"status": "success",
"version": published_version.version,
"published_at": app_model.published_at.isoformat()
}
@staticmethod
def disable_app(app_model: App, account: Account, reason: str = None):
"""禁用应用"""
# 1. 状态检查
if app_model.status == AppStatus.DISABLED:
return # 已经是禁用状态
# 2. 清理运行中的任务
AppTaskService.cancel_running_tasks(app_model.id)
# 3. 更新状态
old_status = app_model.status
app_model.status = AppStatus.DISABLED
app_model.disabled_at = datetime.utcnow()
app_model.disabled_by = account.id
app_model.disable_reason = reason
db.session.commit()
# 4. 记录操作日志
AppOperationLog.create(
app_id=app_model.id,
operation="disable",
operator_id=account.id,
details={"old_status": old_status, "reason": reason}
)
6.2 应用配置验证器
为确保应用配置的正确性，Dify 实现了完善的验证机制：
class AppValidator:
@classmethod
def validate_app_config(cls, app_model: App) -> ValidationResult:
"""验证应用配置"""
errors = []
warnings = []
# 1. 基础信息验证
if not app_model.name or len(app_model.name.strip()) == 0:
errors.append("Application name is required")
if len(app_model.name) > 255:
errors.append("Application name too long (max 255 characters)")
# 2. 模式特定验证
app_mode = AppMode.value_of(app_model.mode)
if app_mode in [AppMode.CHAT, AppMode.AGENT_CHAT, AppMode.COMPLETION]:
# 模型配置验证
model_config_errors = cls._validate_model_config(app_model.app_model_config)
errors.extend(model_config_errors)
elif app_mode in [AppMode.ADVANCED_CHAT, AppMode.WORKFLOW]:
# 工作流验证
workflow_errors = cls._validate_workflow(app_model.workflow)
errors.extend(workflow_errors)
# 3. API配置验证
if app_model.enable_api:
api_errors = cls._validate_api_config(app_model)
errors.extend(api_errors)
# 4. 网站配置验证
if app_model.enable_site:
site_errors = cls._validate_site_config(app_model)
errors.extend(site_errors)
return ValidationResult(
is_valid=len(errors) == 0,
errors=errors,
warnings=warnings
)
@classmethod
def _validate_model_config(cls, model_config: AppModelConfig) -> list:
"""验证模型配置"""
errors = []
if not model_config:
errors.append("Model configuration is required")
return errors
# 验证模型提供商
if not model_config.provider:
errors.append("Model provider is required")
else:
# 检查提供商是否已配置凭据
if not ModelProviderService.is_provider_configured(
model_config.tenant_id, model_config.provider
):
errors.append(f"Model provider '{model_config.provider}' is not configured")
# 验证模型名称
if not model_config.model:
errors.append("Model name is required")
# 验证模型参数
configs = model_config.configs or {}
temperature = configs.get("temperature", 0.7)
if not isinstance(temperature, (int, float)) or temperature < 0 or temperature > 2:
errors.append("Temperature must be between 0 and 2")
max_tokens = configs.get("max_tokens", 1000)
if not isinstance(max_tokens, int) or max_tokens < 1 or max_tokens > 128000:
errors.append("Max tokens must be between 1 and 128000")
return errors
@classmethod
def _validate_workflow(cls, workflow) -> list:
"""验证工作流配置"""
errors = []
if not workflow:
errors.append("Workflow configuration is required")
return errors
graph = workflow.graph_dict
if not graph or not graph.get("nodes"):
errors.append("Workflow must contain at least one node")
return errors
# 验证节点连接
nodes = graph.get("nodes", [])
edges = graph.get("edges", [])
# 检查是否有开始节点
start_nodes = [n for n in nodes if n.get("data", {}).get("type") == "start"]
if not start_nodes:
errors.append("Workflow must have a start node")
# 检查节点配置完整性
for node in nodes:
node_errors = cls._validate_workflow_node(node)
errors.extend(node_errors)
# 检查连接完整性
edge_errors = cls._validate_workflow_edges(nodes, edges)
errors.extend(edge_errors)
return errors
6.3 应用监控与健康检查
生产环境中的应用需要持续的监控和健康检查：
class AppHealthCheckService:
@staticmethod
def check_app_health(app_model: App) -> HealthCheckResult:
"""检查应用健康状态"""
checks = []
# 1. 基础配置检查
config_check = AppHealthCheckService._check_configuration(app_model)
checks.append(config_check)
# 2. 模型提供商可用性检查
if app_model.mode in ["chat", "agent-chat", "completion"]:
provider_check = AppHealthCheckService._check_model_provider(app_model)
checks.append(provider_check)
# 3. 工作流节点检查
if app_model.mode in ["advanced-chat", "workflow"]:
workflow_check = AppHealthCheckService._check_workflow_nodes(app_model)
checks.append(workflow_check)
# 4. 外部依赖检查
dependency_check = AppHealthCheckService._check_external_dependencies(app_model)
checks.append(dependency_check)
# 5. 性能指标检查
performance_check = AppHealthCheckService._check_performance_metrics(app_model)
checks.append(performance_check)
# 计算整体健康状态
overall_status = "healthy"
if any(check.status == "critical" for check in checks):
overall_status = "critical"
elif any(check.status == "warning" for check in checks):
overall_status = "warning"
return HealthCheckResult(
app_id=app_model.id,
overall_status=overall_status,
checks=checks,
checked_at=datetime.utcnow()
)
@staticmethod
def _check_model_provider(app_model: App) -> HealthCheck:
"""检查模型提供商状态"""
try:
model_config = app_model.app_model_config
if not model_config:
return HealthCheck(
name="model_provider",
status="critical",
message="Model configuration not found"
)
# 测试模型调用
from core.model_manager import ModelManager
model_manager = ModelManager()
# 执行简单的模型调用测试
model_instance = model_manager.get_model_instance(
tenant_id=app_model.tenant_id,
provider=model_config.provider,
model_type=ModelType.LLM,
model=model_config.model
)
# 简单的连通性测试
test_result = model_instance.invoke(
model=model_config.model,
credentials=model_manager.get_provider_credentials(
tenant_id=app_model.tenant_id,
provider=model_config.provider
),
prompt_messages=[{"content": "test", "role": "user"}],
model_parameters={"max_tokens": 10, "temperature": 0}
)
return HealthCheck(
name="model_provider",
status="healthy",
message="Model provider is responding normally",
details={"response_time": test_result.usage.total_time}
)
except Exception as e:
return HealthCheck(
name="model_provider",
status="critical",
message=f"Model provider check failed: {str(e)}"
)
七、应用权限与安全机制
7.1 基于角色的访问控制 (RBAC)
Dify 实现了细粒度的权限控制系统：
# 权限定义
class AppPermission:
VIEW = "app:view" # 查看应用
EDIT = "app:edit" # 编辑应用
DELETE = "app:delete" # 删除应用
PUBLISH = "app:publish" # 发布应用
MANAGE_API = "app:api" # 管理API
VIEW_LOGS = "app:logs" # 查看日志
class AppRoleService:
@staticmethod
def check_app_permission(user: Account, app: App, permission: str) -> bool:
"""检查用户对应用的权限"""
# 1. 超级管理员拥有所有权限
if user.is_admin:
return True
# 2. 应用创建者拥有所有权限
if app.created_by == user.id:
return True
# 3. 检查租户级别权限
tenant_role = TenantService.get_user_role(user.id, app.tenant_id)
if tenant_role == "owner":
return True
# 4. 检查应用级别权限
app_permission = db.session.query(AppUserPermission).filter(
AppUserPermission.app_id == app.id,
AppUserPermission.user_id == user.id,
AppUserPermission.permission == permission
).first()
return app_permission is not None
@staticmethod
def grant_app_permission(granter: Account, app: App, user_id: str,
permissions: list) -> bool:
"""授予应用权限"""
# 1. 检查授权者权限
if not AppRoleService.check_app_permission(granter, app, AppPermission.MANAGE_API):
raise PermissionError("Insufficient permissions to grant access")
# 2. 批量授权
for permission in permissions:
existing = db.session.query(AppUserPermission).filter(
AppUserPermission.app_id == app.id,
AppUserPermission.user_id == user_id,
AppUserPermission.permission == permission
).first()
if not existing:
app_permission = AppUserPermission(
app_id=app.id,
user_id=user_id,
permission=permission,
granted_by=granter.id,
granted_at=datetime.utcnow()
)
db.session.add(app_permission)
db.session.commit()
return True
7.2 API 密钥管理
应用的 API 访问通过密钥进行控制：
# 来源：api/controllers/console/apikey.py (API密钥管理)
class AppApiKeyService:
@staticmethod
def generate_api_key(app: App, account: Account, name: str = None) -> ApiToken:
"""生成应用API密钥"""
# 1. 权限检查
if not AppRoleService.check_app_permission(account, app, AppPermission.MANAGE_API):
raise PermissionError("No permission to manage API keys")
# 2. 生成密钥
api_key = ApiToken.generate_api_key("app-", 24)
# 3. 创建记录
api_token = ApiToken(
app_id=app.id,
tenant_id=app.tenant_id,
token=api_key,
type="app",
name=name or f"API Key {datetime.now().strftime('%Y-%m-%d %H:%M')}",
created_by=account.id,
last_used_at=None
)
db.session.add(api_token)
db.session.commit()
return api_token
@staticmethod
def revoke_api_key(app: App, api_key_id: str, account: Account) -> bool:
"""撤销API密钥"""
# 1. 权限检查
if not AppRoleService.check_app_permission(account, app, AppPermission.MANAGE_API):
raise PermissionError("No permission to manage API keys")
# 2. 查找并撤销密钥
api_token = db.session.query(ApiToken).filter(
ApiToken.id == api_key_id,
ApiToken.app_id == app.id
).first()
if not api_token:
raise ValueError("API key not found")
# 3. 软删除（保留审计记录）
api_token.is_active = False
api_token.revoked_at = datetime.utcnow()
api_token.revoked_by = account.id
db.session.commit()
# 4. 清理缓存中的密钥
cache_key = f"api_token:{api_token.token}"
redis_client.delete(cache_key)
return True
八、性能优化与最佳实践
8.1 应用列表查询优化
应用列表是用户最常访问的页面，需要特别的性能优化：
class AppListService:
@staticmethod
def get_paginated_apps(tenant_id: str, page: int = 1, per_page: int = 20,
filters: dict = None) -> dict:
"""获取分页应用列表（优化版本）"""
# 1. 构建基础查询
query = db.session.query(App).filter(
App.tenant_id == tenant_id,
App.is_deleted == False # 排除已删除应用
)
# 2. 应用过滤条件
if filters:
if 'mode' in filters:
query = query.filter(App.mode.in_(filters['mode']))
if 'status' in filters:
query = query.filter(App.status.in_(filters['status']))
if 'keyword' in filters:
keyword = f"%{filters['keyword']}%"
query = query.filter(
db.or_(
App.name.ilike(keyword),
App.description.ilike(keyword)
)
)
# 3. 排序（默认按更新时间倒序）
query = query.order_by(App.updated_at.desc())
# 4. 分页查询
pagination = query.paginate(
page=page,
per_page=per_page,
error_out=False
)
# 5. 预加载关联数据，避免 N+1 查询
apps = pagination.items
app_ids = [app.id for app in apps]
# 批量加载应用配置
app_configs = db.session.query(AppModelConfig).filter(
AppModelConfig.app_id.in_(app_ids)
).all()
config_map = {config.app_id: config for config in app_configs}
# 批量加载最近对话统计
conversation_stats = db.session.query(
Conversation.app_id,
db.func.count(Conversation.id).label('conversation_count'),
db.func.max(Conversation.updated_at).label('last_conversation_at')
).filter(
Conversation.app_id.in_(app_ids)
).group_by(Conversation.app_id).all()
stats_map = {stat[0]: {
'conversation_count': stat[1],
'last_conversation_at': stat[2]
} for stat in conversation_stats}
# 6. 组装返回数据
app_list = []
for app in apps:
app_data = {
'id': app.id,
'name': app.name,
'description': app.description,
'mode': app.mode,
'icon': app.icon,
'icon_background': app.icon_background,
'status': app.status,
'enable_site': app.enable_site,
'enable_api': app.enable_api,
'created_at': app.created_at.isoformat(),
'updated_at': app.updated_at.isoformat(),
# 预加载的配置信息
'model_config': config_map.get(app.id, {}).to_dict() if config_map.get(app.id) else None,
# 统计信息
'stats': stats_map.get(app.id, {
'conversation_count': 0,
'last_conversation_at': None
})
}
app_list.append(app_data)
return {
'apps': app_list,
'pagination': {
'page': page,
'per_page': per_page,
'total': pagination.total,
'pages': pagination.pages,
'has_prev': pagination.has_prev,
'has_next': pagination.has_next
}
}
8.2 缓存策略
对于频繁访问的应用数据，实施多层缓存策略：
class AppCacheService:
# 缓存键模板
APP_CACHE_KEY = "app:{app_id}"
APP_CONFIG_CACHE_KEY = "app_config:{app_id}"
APP_LIST_CACHE_KEY = "app_list:{tenant_id}:{page}:{filters_hash}"
@staticmethod
def get_app_with_cache(app_id: str) -> App:
"""带缓存的应用获取"""
cache_key = AppCacheService.APP_CACHE_KEY.format(app_id=app_id)
# 1. 尝试从Redis获取
cached_data = redis_client.get(cache_key)
if cached_data:
app_data = json.loads(cached_data)
return App.from_dict(app_data)
# 2. 从数据库查询
app = db.session.query(App).filter(App.id == app_id).first()
if not app:
return None
# 3. 写入缓存（15分钟过期）
redis_client.setex(
cache_key,
900, # 15分钟
json.dumps(app.to_dict())
)
return app
@staticmethod
def invalidate_app_cache(app_id: str):
"""失效应用相关缓存"""
# 删除应用缓存
app_cache_key = AppCacheService.APP_CACHE_KEY.format(app_id=app_id)
redis_client.delete(app_cache_key)
# 删除配置缓存
config_cache_key = AppCacheService.APP_CONFIG_CACHE_KEY.format(app_id=app_id)
redis_client.delete(config_cache_key)
# 获取应用信息以清理列表缓存
app = db.session.query(App).filter(App.id == app_id).first()
if app:
# 删除租户下的应用列表缓存
list_pattern = f"app_list:{app.tenant_id}:*"
for key in redis_client.scan_iter(match=list_pattern):
redis_client.delete(key)
九、开发实战指南
9.1 添加自定义应用类型
如果需要扩展 Dify 支持新的应用类型，可以按以下步骤进行：
# 1. 扩展应用模式枚举
class AppMode(Enum):
CHAT = "chat"
AGENT_CHAT = "agent-chat"
ADVANCED_CHAT = "advanced-chat"
WORKFLOW = "workflow"
COMPLETION = "completion"
# 新增自定义类型
CUSTOM_ANALYZER = "custom-analyzer" # 自定义分析器
# 2. 更新允许创建的模式列表
ALLOW_CREATE_APP_MODES = [
"chat", "agent-chat", "advanced-chat",
"workflow", "completion", "custom-analyzer"
]
# 3. 实现自定义应用的配置管理器
class CustomAnalyzerAppConfigManager:
@staticmethod
def get_app_config(app_model: App) -> CustomAnalyzerAppConfig:
"""获取自定义分析器应用配置"""
model_config = app_model.app_model_config
if not model_config:
raise ValueError("Custom analyzer app requires model configuration")
return CustomAnalyzerAppConfig(
app_id=app_model.id,
model_config=model_config.to_dict(),
analyzer_settings=model_config.configs.get('analyzer_settings', {}),
output_format=model_config.configs.get('output_format', 'json')
)
@staticmethod
def validate_config(config: dict) -> list:
"""验证自定义分析器配置"""
errors = []
# 验证分析器特定配置
analyzer_settings = config.get('analyzer_settings', {})
if not analyzer_settings.get('analysis_type'):
errors.append("Analysis type is required for custom analyzer")
# 验证输出格式
output_format = config.get('output_format', 'json')
if output_format not in ['json', 'csv', 'xml']:
errors.append("Invalid output format. Must be json, csv, or xml")
return errors
# 4. 扩展应用创建服务
class AppService:
@staticmethod
def create_custom_analyzer_app(tenant_id: str, name: str,
analyzer_config: dict, account: Account) -> App:
"""创建自定义分析器应用"""
# 验证配置
config_errors = CustomAnalyzerAppConfigManager.validate_config(analyzer_config)
if config_errors:
raise ValidationError(config_errors)
# 创建应用
app = App(
tenant_id=tenant_id,
name=name,
mode=AppMode.CUSTOM_ANALYZER.value,
icon='📊', # 默认分析器图标
created_by=account.id
)
db.session.add(app)
db.session.flush()
# 创建配置
app_model_config = AppModelConfig(
app_id=app.id,
configs=analyzer_config,
created_by=account.id
)
db.session.add(app_model_config)
app.app_model_config_id = app_model_config.id
db.session.commit()
return app
9.2 应用监控与运维
生产环境中的应用需要完善的监控体系：
class AppMonitoringService:
@staticmethod
def record_app_usage(app_id: str, usage_type: str, metadata: dict = None):
"""记录应用使用情况"""
usage_record = AppUsageRecord(
app_id=app_id,
usage_type=usage_type, # 'api_call', 'conversation', 'workflow_run'
timestamp=datetime.utcnow(),
metadata=metadata or {}
)
# 异步写入使用记录
celery_app.send_task('tasks.record_app_usage', args=[usage_record.to_dict()])
@staticmethod
def get_app_metrics(app_id: str, time_range: str = '24h') -> dict:
"""获取应用指标"""
end_time = datetime.utcnow()
if time_range == '24h':
start_time = end_time - timedelta(hours=24)
elif time_range == '7d':
start_time = end_time - timedelta(days=7)
elif time_range == '30d':
start_time = end_time - timedelta(days=30)
else:
start_time = end_time - timedelta(hours=24)
# 查询使用统计
usage_stats = db.session.query(
AppUsageRecord.usage_type,
db.func.count(AppUsageRecord.id).label('count'),
db.func.avg(AppUsageRecord.response_time).label('avg_response_time')
).filter(
AppUsageRecord.app_id == app_id,
AppUsageRecord.timestamp >= start_time,
AppUsageRecord.timestamp <= end_time
).group_by(AppUsageRecord.usage_type).all()
# 查询错误统计
error_stats = db.session.query(
db.func.count(AppErrorLog.id).label('error_count')
).filter(
AppErrorLog.app_id == app_id,
AppErrorLog.timestamp >= start_time,
AppErrorLog.timestamp <= end_time
).scalar()
# 计算可用性
total_requests = sum(stat.count for stat in usage_stats)
availability = ((total_requests - error_stats) / total_requests * 100) if total_requests > 0 else 100
return {
'time_range': time_range,
'total_requests': total_requests,
'error_count': error_stats,
'availability': round(availability, 2),
'usage_breakdown': [
{
'type': stat.usage_type,
'count': stat.count,
'avg_response_time': round(stat.avg_response_time or 0, 3)
}
for stat in usage_stats
]
}
9.3 应用备份与恢复
class AppBackupService:
@staticmethod
def create_backup(app_id: str, backup_type: str = 'full') -> dict:
"""创建应用备份"""
app = db.session.query(App).filter(App.id == app_id).first()
if not app:
raise ValueError("Application not found")
backup_data = {
'backup_version': '1.0',
'backup_type': backup_type,
'created_at': datetime.utcnow().isoformat(),
'app_info': app.to_dict()
}
# 备份应用配置
if app.app_model_config:
backup_data['model_config'] = app.app_model_config.to_dict()
# 备份工作流（如果有）
if app.workflow:
backup_data['workflow'] = {
'graph': app.workflow.graph_dict,
'features': app.workflow.features_dict,
'environment_variables': [
var.to_dict() for var in app.workflow.environment_variables
]
}
# 备份API密钥列表（不包含密钥值）
api_keys = db.session.query(ApiToken).filter(
ApiToken.app_id == app_id,
ApiToken.is_active == True
).all()
backup_data['api_keys'] = [
{
'name': key.name,
'created_at': key.created_at.isoformat(),
'last_used_at': key.last_used_at.isoformat() if key.last_used_at else None
}
for key in api_keys
]
# 如果是完整备份，包含对话历史
if backup_type == 'full':
conversations = db.session.query(Conversation).filter(
Conversation.app_id == app_id
).limit(1000).all() # 限制备份数量
backup_data['conversations'] = [
conv.to_dict() for conv in conversations
]
# 存储备份文件
backup_filename = f"app_backup_{app_id}_{int(time.time())}.json"
backup_path = os.path.join(current_app.config['BACKUP_DIR'], backup_filename)
with open(backup_path, 'w', encoding='utf-8') as f:
json.dump(backup_data, f, ensure_ascii=False, indent=2)
# 记录备份信息
backup_record = AppBackupRecord(
app_id=app_id,
backup_type=backup_type,
file_path=backup_path,
file_size=os.path.getsize(backup_path),
created_at=datetime.utcnow()
)
db.session.add(backup_record)
db.session.commit()
return {
'backup_id': backup_record.id,
'backup_file': backup_filename,
'backup_size': backup_record.file_size,
'created_at': backup_record.created_at.isoformat()
}
十、总结与最佳实践
10.1 架构设计要点
通过对 Dify 应用管理模块的深入分析，我们可以总结出以下架构设计要点：
- 清晰的分层架构: 控制器、服务、数据访问层职责明确，便于维护和测试
- 灵活的配置管理: 支持多种应用模式，配置与业务逻辑分离
- 完善的生命周期管理: 从创建到归档的完整状态流转
- 精细的权限控制: 基于角色和资源的访问控制机制
- 性能优化意识: 缓存、批量查询、懒加载等优化手段的综合运用
10.2 开发最佳实践
- 数据模型设计:
- 合理使用外键约束，保证数据一致性
- 适度冗余，提高查询性能
- 预留扩展字段，支持未来功能演进
- 服务层设计:
- 单一职责原则，每个服务类职责明确
- 异常处理完善，提供有意义的错误信息
- 事务边界清晰，保证数据一致性
- API设计:
- RESTful风格，资源和操作语义明确
- 统一的响应格式，便于前端处理
- 完善的参数验证和错误处理
- 性能优化:
- 合理使用缓存，减少数据库压力
- 避免N+1查询问题
- 异步处理耗时操作
10.3 扩展指南
如果你要基于 Dify 的架构开发自己的应用管理系统，建议：
- 模块化设计: 将不同功能拆分为独立模块，便于维护和扩展
- 插件化架构: 支持第三方扩展，增强系统灵活性
- 监控和日志: 完善的监控体系，便于问题排查和性能优化
- 文档和测试: 完整的API文档和单元测试，保证代码质量
结语
Dify 的应用管理模块展现了一个成熟产品应该具备的特质：架构清晰、功能完备、性能优异、安全可靠。通过深入分析其源码实现，我们不仅学到了具体的技术方案，更重要的是理解了背后的设计思想和工程实践。
在下一章中，我们将深入探讨 Dify 的 Workflow 编排引擎，看看它是如何实现可视化的工作流设计和执行的。相信那里会有更多令人惊喜的设计等待我们去发现！
如果你在实践中遇到问题，或者有更好的优化建议，欢迎在评论区分享。记住，最好的学习方式就是动手实践——下载 Dify 源码，尝试运行和修改，在实战中加深理解！
欢迎加入DeepSeek 技术社区。在这里，你可以找到志同道合的朋友，共同探索AI技术的奥秘。
更多推荐
12
0- 0
已为社区贡献10条内容
所有评论(0)
