K8S部署分布式DeepSeek-r1:671b推理集群

硬件配置服务器数量(台)CPU(核)内存(TB)系统版本RDMA2192/台2.0Ti/台软件工具软件版本备注Kubernetesv1.30.6容器编排引擎v24.9.1自动化管理配置GPU驱动程序Volcanov1.9.0调度引擎560.35.03GPU驱动560.35.03NVSwitch互联CUDA12.6MLNX_OFEDIB驱动NCCL2.21.5GPU多卡通信SGLangLLM推理引擎

黑帽子唐哥

960人浏览 · 2025-04-02 11:13:28

黑帽子唐哥 · 2025-04-02 11:13:28 发布

随着 DeepSeek AI 大模型的崛起，近期私有化部署逐渐成为行业趋势。常见的部署方式之一是使用 Ollama，这对于个人用户和本地开发环境而言，具有较好的兼容性，尤其是支持各种 GPU 硬件和大模型的兼容性，且无需复杂的配置就能够启动。然而，相比于专业的推理引擎，如 SGLang、vLLM，Ollama 在性能上存在一定差距。

今天，将介绍如何结合云原生K8s、SGLang、LeaderWorkerSet 和 Volcano 等技术栈，来高效部署分布式 DeepSeek-r1 满血版推理集群。通过这一架构，可以充分利用云原生技术的优势，确保模型的高性能推理以及集群的灵活扩展性。

选型SGLang推理引擎的理由：

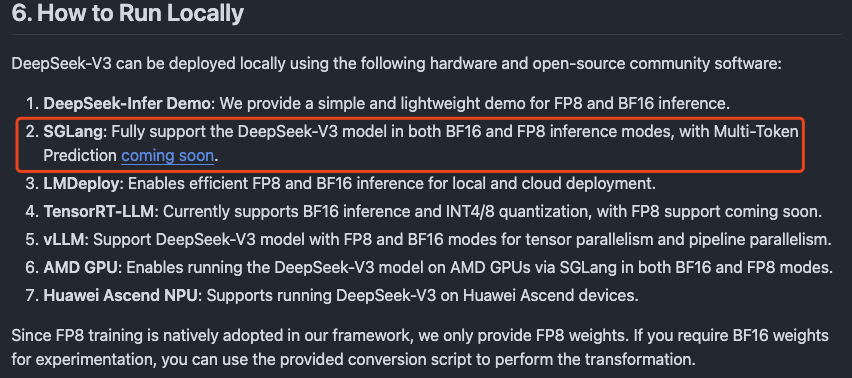

图1 来自deepseek-ai/DeepSeek-V3

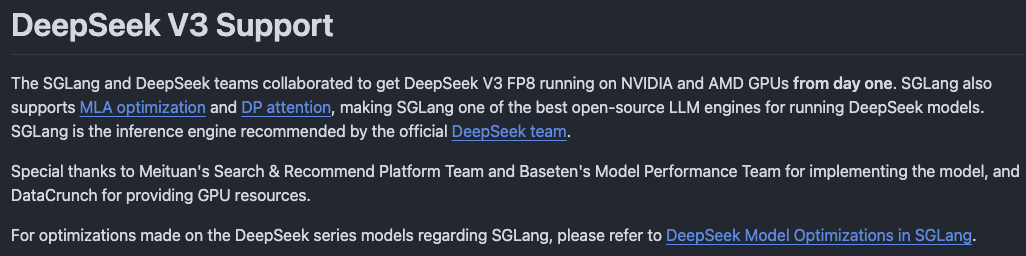

图2 来自deepseek-ai/DeepSeek-V3 Support

环境准备

1、模型下载

本次部署的是企业级满血版的Deepseek-R1 671B。

方式一：通过HuggingFace 下载
仓库地址：https://huggingface.co/deepseek-ai/DeepSeek-R1

方式二：通过 ModelScope 下载（阿程通过此方式下载）
仓库地址：https://modelscope.cn/models/deepseek-ai/DeepSeek-R1/files

1、安装ModelScope
pip3 install modelscope

2、下载完整模型repo
mkdir /file_CPU_01/modelServing/DeepSeek-R1 -p
nohup modelscope download --model deepseek-ai/DeepSeek-R1 --local_dir /file_CPU_01/modelServing/DeepSeek-R1/ &

在Linux环境下载后的完整DeepSeek-R1模型大小为638G

2、软硬件环境介绍

硬件配置

服务器	数量(台)	CPU(核)	内存(TB)	系统版本	RDMA
NVIDIA H100 80GB HBM3	2	192/台	2.0Ti/台	Ubuntu 22.04.5 LTS	4 * IB(400 Gb/sec)

软件工具

软件	版本	备注
Kubernetes	v1.30.6	容器编排引擎
GPU Operator	v24.9.1	自动化管理配置GPU驱动程序
Volcano	v1.9.0	调度引擎
NVIDIA Driver	560.35.03	GPU驱动
NVIDIA-Fabric Manager	560.35.03	NVSwitch互联
CUDA	12.6
MLNX_OFED	24.10-0.7.0.0	IB驱动
NCCL	2.21.5	GPU多卡通信
SGLang	v0.4.2.post4-cu125	LLM推理引擎
LeaderWorkerSet	v0.5.1	PodGroup Deploy API
Open-WebUI	v0.5.10	AI聊天互动工具

正式部署

云原生分布式推理集群部署拓扑：

1、部署LWS API

Github项目地址：
https://github.com/kubernetes-sigs/lws

在企业分布式推理架构中，需要多个 Pod 共同组成一个推理服务，同时不同 Pod 还具有不同的主从角色（在 sglang 和 vllm 中称为head 和 worker 节点）。Kubernetes 原生提供了如 Deployments、StatefulSet 等资源管理对象，能够很好管理单个 Pod 的生命周期和扩缩容。但是对于多机多卡分布式推理需要跨多个 Pod 部署资源并对多个 Pod 进行扩缩容的场景，就无法使用 Deployments 或 StatefulSet 。

为了应对这个挑战，Kubernetes 社区在 StatefulSet 的基础上提出了 Leader-Worker Set （LWS） API ，LWS API 提供了一种原生的方式来管理分布式推理任务中常见的 Leader-Worker 模式，其中 Leader Pods 通常负责协调任务、Worker Pods 则负责执行实际的推理任务或计算工作。LWS API 能够确保 Leader Pods 在完全就绪之前，不会启动 Worker Pods。同时可以单独定义 Leader 和 Worker 所需的 Pod 数量。

使用 LWS API 的主要优势包括：

简化分布式推理的部署：通过 LWS API，提供了一个声明式的 API，用户只需定义 Leader 和 Worker 的配置，Kubernetes 控制器会自动处理其生命周期管理。用户可以更轻松地部署复杂的分布式推理工作负载，而无需手动管理 Leader 和 Worker 的依赖关系和副本数量;
无缝水平扩容：分布式推理的服务需要多个 Pods 共同提供服务，在进行扩容时也需要以多个 Pod 一组为原子单位进行扩展， LWS 可以与 k8s HPA 无缝对接，将 LWS 作为HPA扩容的Target，实现推理服务整组扩容;
拓扑感知调度 ：在分布式推理中，不同 Pod 之间需要进行大量数据交互。为了减少通信延时 LWS API 结合了拓扑感知调度，保证能够保证 Leader 和 Worker Pod 能够调度到 RDMA 网络中拓扑距离尽可能接近的节点上。

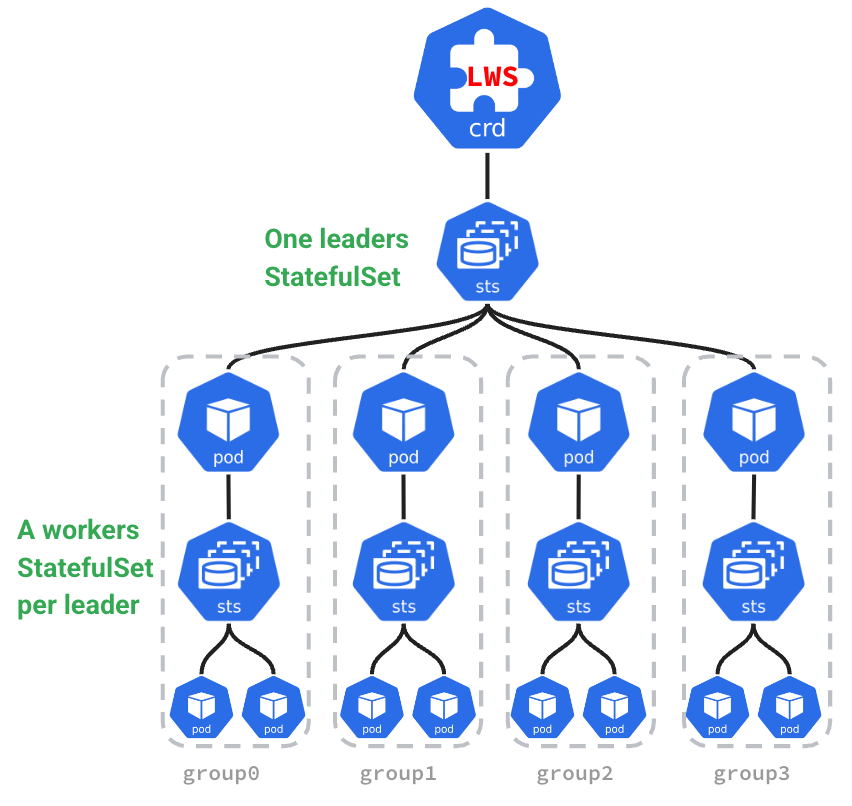

来自LWS官网

1. 安装 LWS API 的 CRD
~# VERSION=v0.5.1
~# kubectl apply --server-side -f https://github.com/kubernetes-sigs/lws/releases/download/$VERSION/manifests.yaml

2. 检查LWS 资源
~# kubectl get pods -n lws-system
NAME                                     READY   STATUS    RESTARTS   AGE
lws-controller-manager-7474f46db-xb8br   1/1     Running   0          14h
lws-controller-manager-7474f46db-xkcf2   1/1     Running   0          14h

~# kubectl get svc -n lws-system
NAME                                     TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
lws-controller-manager-metrics-service   ClusterIP   10.233.35.119   <none>        8443/TCP   14h
lws-webhook-service                      ClusterIP   10.233.4.24     <none>        443/TCP    14h

~# kubectl api-resources |grep -i lws
leaderworkersets                    lws                      leaderworkerset.x-k8s.io/v1                 true         LeaderWorkerSet

2、通过 LWS 部署DeepSeek-r1模型

apiVersion: leaderworkerset.x-k8s.io/v1
kind: LeaderWorkerSet
metadata:
  name: sglang
  labels:
    app: sglang
spec:
  replicas: 1
  startupPolicy: LeaderCreated
  rolloutStrategy:
    type: RollingUpdate
    rollingUpdateConfiguration:
      maxSurge: 0
      maxUnavailable: 2
  leaderWorkerTemplate:
    size: 2
    restartPolicy: RecreateGroupOnPodRestart
    leaderTemplate:
      metadata:
        labels:
          role: leader
      spec:
        containers:
          - name: sglang-head
            image: ccr.ccs.tencentyun.com/kason/sglang:v0.4.2.post4-cu125
            imagePullPolicy: IfNotPresent
            workingDir: /sgl-workspace
            command: ["sh", "-c"]
            args:
            - >
              cd /sgl-workspace && python3 -m sglang.launch_server
              --model-path /root/.cache/modelscope/DeepSeek-R1
              --served-model-name deepseek-r1
              --tp 16
              --dist-init-addr $LWS_LEADER_ADDRESS:20000
              --nnodes $LWS_GROUP_SIZE
              --node-rank 0
              --trust-remote-code
              --context-length 131072
              --enable-metrics
              --host 0.0.0.0
              --port 8000
            env:
              - name: GLOO_SOCKET_IFNAME
                value: eth0
              - name: NCCL_IB_HCA
                value: "mlx5_0,mlx5_1,mlx5_4,mlx5_5"
              - name: NCCL_P2P_LEVEL
                value: "NVL"
              - name: NCCL_IB_GID_INDEX
                value: "0"
              - name: NCCL_IB_CUDA_SUPPORT
                value: "1"
              - name: NCCL_IB_DISABLE
                value: "0"
              - name: NCCL_SOCKET_IFNAME
                value: "eth0"
                #value: "ibs13,ibs11,ibs15,ibs17"
              - name: NCCL_DEBUG
                value: "INFO"
              - name: NCCL_NET_GDR_LEVEL
                value: "2"
              - name: POD_NAME
                valueFrom:
                  fieldRef:
                    fieldPath: metadata.name
              - name: SGLANG_USE_MODELSCOPE
                value: "true"
            ports:
            - containerPort: 8000
              name: http
              protocol: TCP
            - containerPort: 20000
              name: distributed
              protocol: TCP
            resources:
              limits:
                cpu: "128"
                memory: "1Ti"
                nvidia.com/gpu: "8"
                rdma/ib: "4"
              requests:
                cpu: "128"
                memory: "1Ti"
                nvidia.com/gpu: "8"
                rdma/ib: "4"
            securityContext:
              capabilities:
                add:
                - IPC_LOCK
                - SYS_PTRACE
            volumeMounts:
              - mountPath: /root/.cache/modelscope
                name: modelscope-cache
              - mountPath: /dev/shm
                name: shm-volume
              - name: localtime
                mountPath: /etc/localtime
                readOnly: true
            readinessProbe:
              tcpSocket:
                port: 8000
              initialDelaySeconds: 120
              periodSeconds: 30
        volumes:
          - name: modelscope-cache
            hostPath:
              path: /file_CPU_01/modelServing
          - name: shm-volume
            emptyDir:
              sizeLimit: 512Gi
              medium: Memory
          - name: localtime
            hostPath:
              path: /etc/localtime
              type: File
        schedulerName: volcano
    workerTemplate:
      metadata:
        name: sglang-worker
      spec:
        containers:
          - name: sglang-worker
            image: ccr.ccs.tencentyun.com/kason/sglang:v0.4.2.post4-cu125
            imagePullPolicy: IfNotPresent
            workingDir: /sgl-workspace
            command: ["sh", "-c"]
            args:
            - >
              cd /sgl-workspace && python3 -m sglang.launch_server
              --model-path /root/.cache/modelscope/DeepSeek-R1
              --served-model-name deepseek-r1
              --tp 16
              --dist-init-addr $LWS_LEADER_ADDRESS:20000
              --nnodes $LWS_GROUP_SIZE
              --node-rank $LWS_WORKER_INDEX
              --trust-remote-code
              --context-length 131072
              --enable-metrics
              --host 0.0.0.0
              --port 8000
            env:
              - name: GLOO_SOCKET_IFNAME
                value: eth0
              - name: NCCL_IB_HCA
                value: "mlx5_0,mlx5_1,mlx5_4,mlx5_5"
              - name: NCCL_P2P_LEVEL
                value: "NVL"
              - name: NCCL_IB_GID_INDEX
                value: "0"
              - name: NCCL_IB_CUDA_SUPPORT
                value: "1"
              - name: NCCL_IB_DISABLE
                value: "0"
              - name: NCCL_SOCKET_IFNAME
                value: "eth0"
                #value: "ibs13,ibs11,ibs15,ibs17"
              - name: NCCL_DEBUG
                value: "INFO"
              - name: NCCL_NET_GDR_LEVEL
                value: "2"
              - name: SGLANG_USE_MODELSCOPE
                value: "true"
              - name: LWS_WORKER_INDEX
                valueFrom:
                  fieldRef:
                    fieldPath: metadata.labels['leaderworkerset.sigs.k8s.io/worker-index']
            ports:
            - containerPort: 8000
              name: http
              protocol: TCP
            - containerPort: 20000
              name: distributed
              protocol: TCP
            resources:
              limits:
                cpu: "128"
                memory: "1Ti"
                nvidia.com/gpu: "8"
                rdma/ib: "4"
              requests:
                cpu: "128"
                memory: "1Ti"
                nvidia.com/gpu: "8"
                rdma/ib: "4"
            securityContext:
              capabilities:
                add:
                - IPC_LOCK
                - SYS_PTRACE
            volumeMounts:
            - mountPath: /root/.cache/modelscope
              name: modelscope-cache
            - mountPath: /dev/shm
              name: shm-volume
            - name: localtime
              mountPath: /etc/localtime
              readOnly: true
        volumes:
        - name: modelscope-cache
          hostPath:
            path: /file_CPU_01/modelServing
        - name: shm-volume
          emptyDir:
            sizeLimit: 512Gi
            medium: Memory
        - name: localtime
          hostPath:
            path: /etc/localtime
            type: File
        schedulerName: volcano

~# kubectl apply -f deepseek-r1-lws-sglang.yaml

~# kubectl get lws -n sre-tools
NAME     AGE
sglang   13h

~# kubectl get pods -n sre-tools |grep sglang
sglang-0                                 1/1     Running   0          15h
sglang-0-1                               1/1     Running   0          15h

#查看日志
~# kubectl logs -n sre-tools sglang-0
INFO 02-13 22:10:34 __init__.py:190] Automatically detected platform cuda.
[2025-02-13 22:10:40] server_args=ServerArgs(model_path='/root/.cache/modelscope/DeepSeek-R1', tokenizer_path='/root/.cache/modelscope/DeepSeek-R1', tokenizer_mode='auto', load_format='auto', trust_remote_code=True, dtype='auto', kv_cache_dtype='auto', quantization_param_path=None, quantization=None, context_length=131072, device='cuda', served_model_name='deepseek-r1', chat_template=None, is_embedding=False, revision=None, skip_tokenizer_init=False, host='0.0.0.0', port=8000, mem_fraction_static=0.79, max_running_requests=None, max_total_tokens=None, chunked_prefill_size=8192, max_prefill_tokens=16384, schedule_policy='lpm', schedule_conservativeness=1.0, cpu_offload_gb=0, prefill_only_one_req=False, tp_size=16, stream_interval=1, stream_output=False, random_seed=824694846, constrained_json_whitespace_pattern=None, watchdog_timeout=300, download_dir=None, base_gpu_id=0, log_level='info', log_level_http=None, log_requests=False, show_time_cost=False, enable_metrics=True, decode_log_interval=40, api_key=None, file_storage_pth='sglang_storage', enable_cache_report=False, dp_size=1, load_balance_method='round_robin', ep_size=1, dist_init_addr='sglang-0.sglang.sre-tools:20000', nnodes=2, node_rank=0, json_model_override_args='{}', lora_paths=None, max_loras_per_batch=8, lora_backend='triton', attention_backend='flashinfer', sampling_backend='flashinfer', grammar_backend='outlines', speculative_draft_model_path=None, speculative_algorithm=None, speculative_num_steps=5, speculative_num_draft_tokens=64, speculative_eagle_topk=8, enable_double_sparsity=False, ds_channel_config_path=None, ds_heavy_channel_num=32, ds_heavy_token_num=256, ds_heavy_channel_type='qk', ds_sparse_decode_threshold=4096, disable_radix_cache=False, disable_jump_forward=False, disable_cuda_graph=False, disable_cuda_graph_padding=False, disable_outlines_disk_cache=False, disable_custom_all_reduce=False, disable_mla=False, disable_overlap_schedule=False, enable_mixed_chunk=False, enable_dp_attention=False, enable_ep_moe=False, enable_torch_compile=False, torch_compile_max_bs=32, cuda_graph_max_bs=160, cuda_graph_bs=None, torchao_config='', enable_nan_detection=False, enable_p2p_check=False, triton_attention_reduce_in_fp32=False, triton_attention_num_kv_splits=8, num_continuous_decode_steps=1, delete_ckpt_after_loading=False, enable_memory_saver=False, allow_auto_truncate=False, enable_custom_logit_processor=False, tool_call_parser=None, enable_hierarchical_cache=False)
INFO 02-13 22:10:43 __init__.py:190] Automatically detected platform cuda.
INFO 02-13 22:10:43 __init__.py:190] Automatically detected platform cuda.
INFO 02-13 22:10:44 __init__.py:190] Automatically detected platform cuda.
INFO 02-13 22:10:44 __init__.py:190] Automatically detected platform cuda.
INFO 02-13 22:10:44 __init__.py:190] Automatically detected platform cuda.
INFO 02-13 22:10:44 __init__.py:190] Automatically detected platform cuda.
INFO 02-13 22:10:44 __init__.py:190] Automatically detected platform cuda.
INFO 02-13 22:10:44 __init__.py:190] Automatically detected platform cuda.
INFO 02-13 22:10:44 __init__.py:190] Automatically detected platform cuda.
[2025-02-13 22:10:49 TP7] MLA optimization is turned on. Use triton backend.
[2025-02-13 22:10:49 TP7] Init torch distributed begin.
[2025-02-13 22:10:50 TP0] MLA optimization is turned on. Use triton backend.
[2025-02-13 22:10:50 TP0] Init torch distributed begin.
[2025-02-13 22:10:51 TP6] MLA optimization is turned on. Use triton backend.
[2025-02-13 22:10:51 TP6] Init torch distributed begin.
[2025-02-13 22:10:51 TP5] MLA optimization is turned on. Use triton backend.
[2025-02-13 22:10:51 TP5] Init torch distributed begin.
[2025-02-13 22:10:51 TP1] MLA optimization is turned on. Use triton backend.
[2025-02-13 22:10:51 TP1] Init torch distributed begin.
[2025-02-13 22:10:51 TP2] MLA optimization is turned on. Use triton backend.
[2025-02-13 22:10:51 TP2] Init torch distributed begin.
[2025-02-13 22:10:51 TP4] MLA optimization is turned on. Use triton backend.
[2025-02-13 22:10:51 TP4] Init torch distributed begin.
[2025-02-13 22:10:51 TP3] MLA optimization is turned on. Use triton backend.
[2025-02-13 22:10:51 TP3] Init torch distributed begin.
[2025-02-13 22:10:57 TP0] sglang is using nccl==2.21.5
[2025-02-13 22:10:57 TP3] sglang is using nccl==2.21.5
[2025-02-13 22:10:57 TP6] sglang is using nccl==2.21.5
[2025-02-13 22:10:57 TP5] sglang is using nccl==2.21.5
[2025-02-13 22:10:57 TP2] sglang is using nccl==2.21.5
[2025-02-13 22:10:57 TP7] sglang is using nccl==2.21.5
[2025-02-13 22:10:57 TP4] sglang is using nccl==2.21.5
[2025-02-13 22:10:57 TP1] sglang is using nccl==2.21.5
sglang-0:99:99 [0] NCCL INFO NCCL_SOCKET_IFNAME set by environment to eth0
sglang-0:99:99 [0] NCCL INFO Bootstrap : Using eth0:10.233.73.96<0>
sglang-0:99:99 [0] NCCL INFO cudaDriverVersion 12060
NCCL version 2.21.5+cuda12.4
[2025-02-13 22:11:02 TP1] Custom allreduce is disabled because this process group spans across nodes.
[2025-02-13 22:11:02 TP0] Custom allreduce is disabled because this process group spans across nodes.
[2025-02-13 22:11:02 TP3] Custom allreduce is disabled because this process group spans across nodes.
[2025-02-13 22:11:02 TP2] Custom allreduce is disabled because this process group spans across nodes.
[2025-02-13 22:11:02 TP5] Custom allreduce is disabled because this process group spans across nodes.
[2025-02-13 22:11:02 TP4] Custom allreduce is disabled because this process group spans across nodes.
[2025-02-13 22:11:02 TP6] Custom allreduce is disabled because this process group spans across nodes.
[2025-02-13 22:11:02 TP7] Custom allreduce is disabled because this process group spans across nodes.
sglang-0:103:103 [4] NCCL INFO cudaDriverVersion 12060
sglang-0:103:103 [4] NCCL INFO NCCL_SOCKET_IFNAME set by environment to eth0
sglang-0:103:103 [4] NCCL INFO Bootstrap : Using eth0:10.233.73.96<0>
sglang-0:103:103 [4] NCCL INFO Plugin Path : /opt/hpcx/nccl_rdma_sharp_plugin/lib/libnccl-net.so
sglang-0:103:103 [4] NCCL INFO P2P plugin IBext_v8
sglang-0:103:103 [4] NCCL INFO NCCL_SOCKET_IFNAME set by environment to eth0
sglang-0:103:103 [4] NCCL INFO NET/IB : Using [0]mlx5_0:1/IB/SHARP [1]mlx5_1:1/IB/SHARP [2]mlx5_4:1/IB/SHARP [3]mlx5_5:1/IB/SHARP [RO]; OOB eth0:10.233.73.96<0>
sglang-0:103:103 [4] NCCL INFO Using non-device net plugin version 0
sglang-0:103:103 [4] NCCL INFO Using network IBext_v8
......
sglang-0:100:1012 [1] NCCL INFO Setting affinity for GPU 1 to ffff,ffffffff,00000000,0000ffff,ffffffff
sglang-0:100:1012 [1] NCCL INFO comm 0x5568e6555af0 rank 1 nRanks 16 nNodes 2 localRanks 8 localRank 1 MNNVL 0
sglang-0:100:1012 [1] NCCL INFO Trees [0] 2/-1/-1->1->0 [1] 2/-1/-1->1->0 [2] 2/-1/-1->1->0 [3] 2/-1/-1->1->0
sglang-0:100:1012 [1] NCCL INFO P2P Chunksize set to 131072
sglang-0:100:1012 [1] NCCL INFO Channel 00/0 : 1[1] -> 14[6] [send] via NET/IBext_v8/0(0)/GDRDMA
sglang-0:100:1012 [1] NCCL INFO Channel 02/0 : 1[1] -> 14[6] [send] via NET/IBext_v8/0(0)/GDRDMA
sglang-0:100:1012 [1] NCCL INFO Channel 01/0 : 1[1] -> 0[0] via P2P/IPC
sglang-0:100:1012 [1] NCCL INFO Channel 03/0 : 1[1] -> 0[0] via P2P/IPC
......
sglang-0:106:1010 [7] NCCL INFO threadThresholds 8/8/64 | 128/8/64 | 512 | 512
[2025-02-13 22:11:06 TP1] Load weight begin. avail mem=78.37 GB
[2025-02-13 22:11:06 TP5] Load weight begin. avail mem=78.37 GB
[2025-02-13 22:11:06 TP6] Load weight begin. avail mem=78.26 GB
[2025-02-13 22:11:06 TP4] Load weight begin. avail mem=78.15 GB
[2025-02-13 22:11:06 TP2] Load weight begin. avail mem=78.26 GB
[2025-02-13 22:11:06 TP7] Load weight begin. avail mem=78.38 GB
[2025-02-13 22:11:06 TP3] Load weight begin. avail mem=78.38 GB
[2025-02-13 22:11:06 TP0] Load weight begin. avail mem=78.15 GB
[2025-02-13 22:11:06 TP6] Detected fp8 checkpoint. Please note that the format is experimental and subject to change.
[2025-02-13 22:11:06 TP2] Detected fp8 checkpoint. Please note that the format is experimental and subject to change.
[2025-02-13 22:11:06 TP3] Detected fp8 checkpoint. Please note that the format is experimental and subject to change.
[2025-02-13 22:11:06 TP4] Detected fp8 checkpoint. Please note that the format is experimental and subject to change.
[2025-02-13 22:11:06 TP1] Detected fp8 checkpoint. Please note that the format is experimental and subject to change.
[2025-02-13 22:11:06 TP7] Detected fp8 checkpoint. Please note that the format is experimental and subject to change.
[2025-02-13 22:11:06 TP0] Detected fp8 checkpoint. Please note that the format is experimental and subject to change.
[2025-02-13 22:11:06 TP5] Detected fp8 checkpoint. Please note that the format is experimental and subject to change.
sglang-0:106:1010 [7] NCCL INFO 4 coCache shape torch.Size([163840, 64])
Loading safetensors checkpoint shards:   0% Completed | 0/162 [00:00<?, ?it/s]
Loading safetensors checkpoint shards:   1% Completed | 1/162 [00:00<02:09,  1.24it/s]
Loading safetensors checkpoint shards:   1% Completed | 2/162 [00:01<02:12,  1.20it/s]
Loading safetensors checkpoint shards:   2% Completed | 3/162 [00:02<02:14,  1.19it/s]
Loading safetensors checkpoint shards:   2% Completed | 4/162 [00:03<02:11,  1.20it/s]
Loading safetensors checkpoint shards:   3% Completed | 5/162 [00:04<02:07,  1.23it/s]
Loading safetensors checkpoint shards:   4% Completed | 6/162 [00:04<02:06,  1.24it/s]
......
Loading safetensors checkpoint shards:  99% Completed | 161/162 [01:34<00:00,  1.44it/s]
Loading safetensors checkpoint shards: 100% Completed | 162/162 [01:35<00:00,  1.48it/s]
Loading safetensors checkpoint shards: 100% Completed | 162/162 [01:35<00:00,  1.70it/s]
......
sglang-0:103:2984 [4] NCCL INFO Channel 01/0 : 14[6] -> 4[4] [receive] via NET/IBext_v8/2/GDRDMA
sglang-0:103:2984 [4] NCCL INFO Channel 03/0 : 14[6] -> 4[4] [receive] via NET/IBext_v8/2/GDRDMA
sglang-0:103:2984 [4] NCCL INFO Channel 01/0 : 4[4] -> 14[6] [send] via NET/IBext_v8/2/GDRDMA
sglang-0:103:2984 [4] NCCL INFO Channel 03/0 : 4[4] -> 14[6] [send] via NET/IBext_v8/2/GDRDMA
sglang-0:103:2984 [4] NCCL INFO Connected all trees
sglang-0:103:2984 [4] NCCL INFO threadThresholds 8/8/64 | 128/8/64 | 512 | 512
100%|██████████| 23/23 [01:30<00:00,  3.92s/it]
[2025-02-13 22:14:23] INFO:     Started server process [1]
[2025-02-13 22:14:23] INFO:     Waiting for application startup.
[2025-02-13 22:14:23] INFO:     Application startup complete.
[2025-02-13 22:14:23] INFO:     Uvicorn running on http://0.0.0.0:8000 (Press CTRL+C to quit)      #启动成功
sglang-0:103:2984 [4] NCCL [2025-02-13 22:14:24] INFO:     127.0.0.1:33198 - "GET /get_model_info HTTP/1.1" 200 OK
[2025-02-13 22:14:31] INFO:     127.0.0.1:33208 - "POST /generate HTTP/1.1" 200 OK
[2025-02-13 22:14:31] The server is fired up and ready to roll!

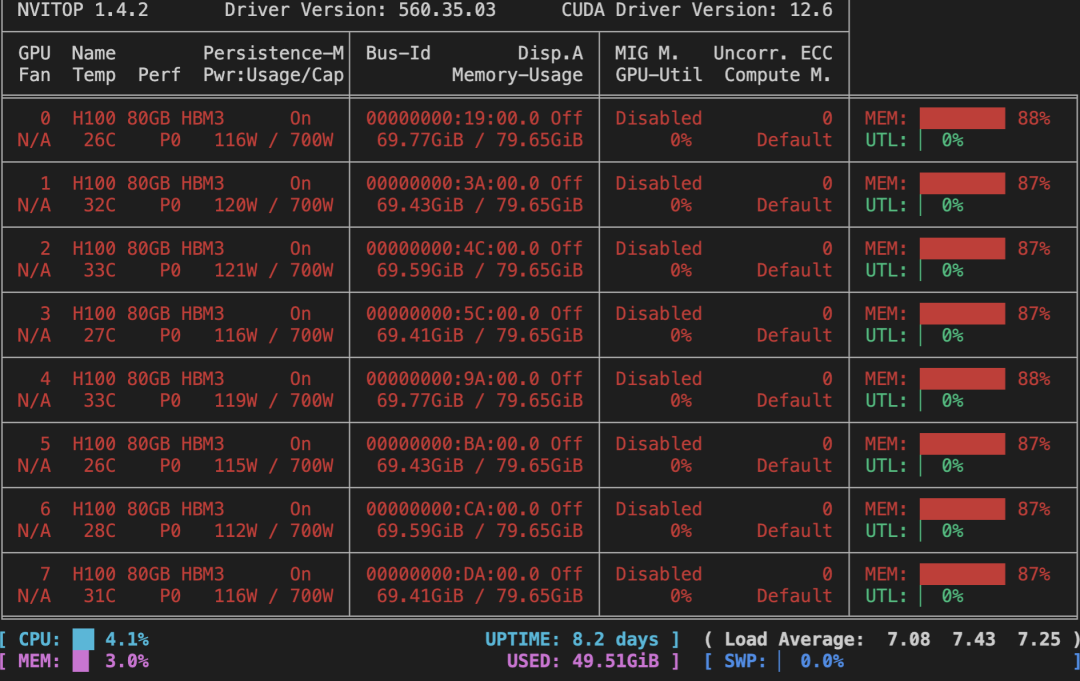

3、查看显存占用情况

4、服务对外暴露

apiVersion: v1
kind: Service
metadata:
  name: sglang-api-svc
  labels:
    app: sglang
spec:
  selector:
      leaderworkerset.sigs.k8s.io/name: sglang
      role: leader
  ports:
    - protocol: TCP
      port: 8000
      targetPort: http
      name: http
  type: NodePort      #这里临时通过NodePort测试

~# kubectl apply -f deepseek-r1-svc.yaml -n sre-tools

#check
~# kubectl get svc -n sre-tools |grep sglang
sglang               ClusterIP   None            <none>        <none>            13h
sglang-api-svc       NodePort    10.233.57.205   <none>        8000:32169/TCP    13h

到此已完成了 DeepSeek R1 大模型的部署和服务对外暴露。接下来通过本地 curl 命令调用 API 或者终端软件工具来测试部署效果。

5、测试部署效果

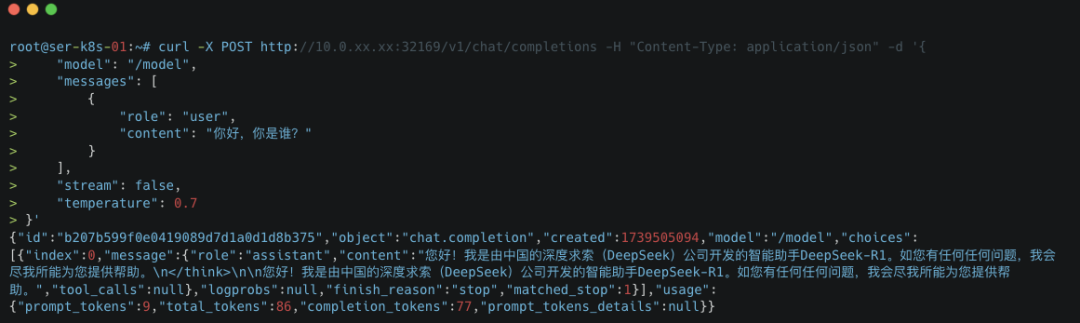

5.1 通过 curl

curl -X POST http://10.0.xx.xx:32169/v1/chat/completions -H "Content-Type: application/json" -d '{
    "model": "/model",
    "messages": [
        {
            "role": "user",
            "content": "你好，你是谁？"
        }
    ],
    "stream": false,
    "temperature": 0.7
}'

5.2 通过 OpenWebUI

a. 部署 OpenWebUI

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: open-webui-data-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 100Gi
  storageClassName: nfs-client

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: open-webui-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: open-webui
  template:
    metadata:
      labels:
        app: open-webui
    spec:
      containers:
      - name: open-webui
        image: ccr.ccs.tencentyun.com/kason/open-webui:main
        imagePullPolicy: Always
        ports:
        - containerPort: 8080
        env:
        - name: OPENAI_API_BASE_URL
          value: "http://10.0.xx.xxx:32169/v1"   # 替换为SGLang API
        - name: ENABLE_OLLAMA_API # 禁用 Ollama API，只保留 OpenAI API
          value: "False"
        volumeMounts:
        - name: open-webui-data
          mountPath: /app/backend/data
      volumes:
      - name: open-webui-data
        persistentVolumeClaim:
          claimName: open-webui-data-pvc

---
apiVersion: v1
kind: Service
metadata:
  name: open-webui-service
spec:
  type: ClusterIP
  ports:
    - port: 3000
      targetPort: 8080
  selector:
    app: open-webui

b. 通过Ingress暴露 OpenWebUI

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: open-webui-ingress
spec:
  rules:
  - host: open-webui.xxxx-sh.com
    http:
      paths:
      - backend:
          service:
            name: open-webui-service
            port:
              number: 3000
        path: /
        pathType: Prefix
  tls:
  - hosts:
    - open-webui.xxxx-sh.com
    secretName: xxxx-tls

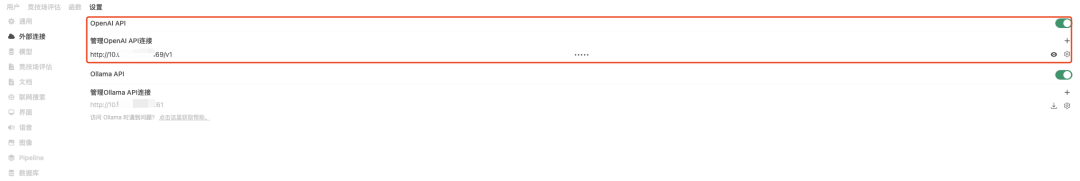

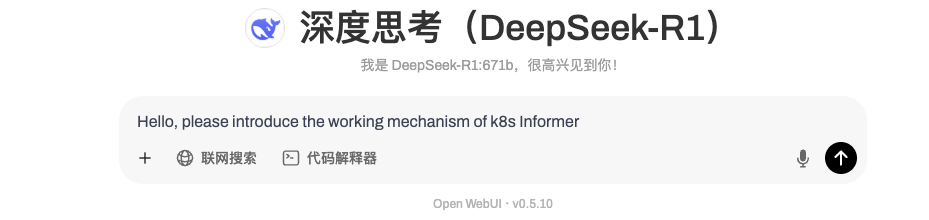

c. 访问 OpenWebUI

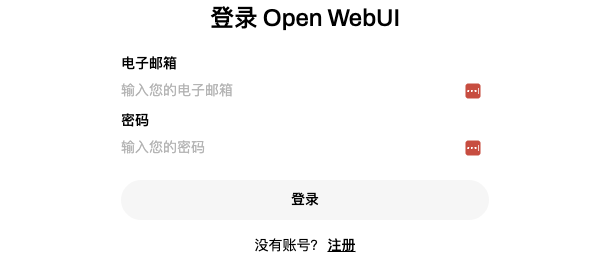

在浏览器访问相应的地址即可进入 OpenWebUI 页面。首次进入会提示创建管理员账号密码，创建完毕后即可登录，然后默认会使用前面下载好的大模型进行对话。

还有一些其他可视化交互工具，例如：
1.Chatbox AI：https://chatboxai.app/zh
2.Cherry Studio：https://cherry-ai.com

我的DeepSeek部署资料已打包好（自取↓）
https://pan.quark.cn/s/7e0fa45596e4

但如果你想知道这个工具为什么能“听懂人话”、写出代码甚至预测市场趋势——答案就藏在大模型技术里！

❗️为什么你必须了解大模型？

1️⃣ 薪资爆炸：应届大模型工程师年薪40万起步，懂“Prompt调教”的带货主播收入翻3倍

2️⃣ 行业重构：金融、医疗、教育正在被AI重塑，不用大模型的公司3年内必淘汰

3️⃣ 零门槛上车：90%的进阶技巧不需写代码！会说话就能指挥AI

（附深度求索BOSS招聘信息）
在这里插入图片描述

⚠️警惕：当同事用DeepSeek 3小时干完你3天的工作时，淘汰倒计时就开始了。

那么，如何系统的去学习大模型LLM？

作为一名从业五年的资深大模型算法工程师，我经常会收到一些评论和私信，我是小白，学习大模型该从哪里入手呢？老师啊，我自学没有方向怎么办？老师，这个地方我不会啊。如果你也有类似的经历，一定要继续看下去！当然这些问题啊，也不是三言两语啊就能讲明白的。

所以我综合了大模型的所有知识点，给大家带来一套全网最全最细的大模型零基础教程。在做这套教程之前呢，我就曾放空大脑，以一个大模型小白的角度去重新解析它，采用基础知识和实战项目相结合的教学方式，历时3个月，终于完成了这样的课程，让你真正体会到什么是每一秒都在疯狂输出知识点。

篇幅有限，⚡️ 朋友们如果有需要全套《2025全新制作的大模型全套资料》，扫码获取~
在这里插入图片描述

👉大模型学习指南+路线汇总👈

我们这套资料呢，会从基础篇、进阶篇和项目实战篇等三大方面来讲解。
在这里插入图片描述

👉①.基础篇👈

基础篇里面包括了Python快速入门、AI开发环境搭建及提示词工程，带你学习大模型核心原理、prompt使用技巧、Transformer架构和预训练、SFT、RLHF等一些基础概念，用最易懂的方式带你入门大模型。
在这里插入图片描述

👉②.进阶篇👈

接下来是进阶篇，你将掌握RAG、Agent、Langchain、大模型微调和私有化部署，学习如何构建外挂知识库并和自己的企业相结合，学习如何使用langchain框架提高开发效率和代码质量、学习如何选择合适的基座模型并进行数据集的收集预处理以及具体的模型微调等等。
在这里插入图片描述

👉③.实战篇👈

实战篇会手把手带着大家练习企业级的落地项目（已脱敏），比如RAG医疗问答系统、Agent智能电商客服系统、数字人项目实战、教育行业智能助教等等，从而帮助大家更好的应对大模型时代的挑战。
在这里插入图片描述

👉④.福利篇👈

最后呢，会给大家一个小福利，课程视频中的所有素材，有搭建AI开发环境资料包，还有学习计划表，几十上百G素材、电子书和课件等等，只要你能想到的素材，我这里几乎都有。我已经全部上传到CSDN，朋友们如果需要可以微信扫描下方CSDN官方认证二维码免费领取【保证100%免费】
在这里插入图片描述
相信我，这套大模型系统教程将会是全网最齐全最易懂的小白专用课！！
